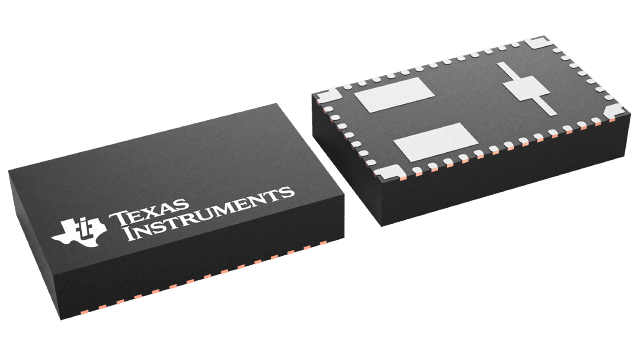

LMZ31506HRUQR Texas Instruments - Yeehing Electronics
6A Power Module with 4.5V-14.5V Input in QFN package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.13 |
| 100 — 249 | 7.975 |
| 250 — 999 | 6.149 |
| 1,000 + | 4.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Non-Isolated DC/DC Converters |
| RoHS | N |
| Product | Non-Isolated / POL |
| Number of Outputs | 1 Output |
| Mounting Style | SMD/SMT |
| Length | 15 mm |
| Width | 9 mm |
| Height | 2.9 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Packaging | Reel |
| Series | LMZ31506H |
| Brand | Texas Instruments |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Product Type | Non-Isolated DC-DC Converters |
| Factory Pack Quantity | 500 |
| Subcategory | DC-DC Converter |
| Tradename | SIMPLE SWITCHER |
For more information, please refer to datasheet
Documents
| LMZ31506HRUQR Datasheet |
More Information
The LMZ31506H power module is an easy-to-use integrated power solution that combines a 6-A DC-to-DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This total power solution allows as few as 3 external components and eliminates the loop compensation and magnetics part selection process.
