Texas Instruments
LMZ31530RLGT
LMZ31530RLGT
Regular price
$24.66 USD
Regular price
Sale price
$24.66 USD
Unit price
per
Couldn't load pickup availability
LMZ31530RLGT Texas Instruments - Yeehing Electronics

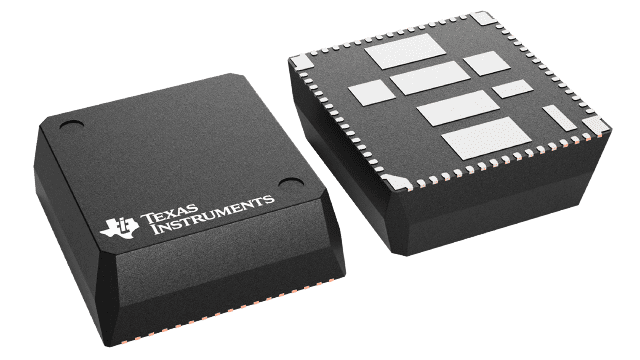

3V to 14.5V, 30A Step-Down Power Module in 15x16x5.8mm QFN Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 34.68 |
| 100 — 249 | 31.57 |
| 250 — 999 | 26.22 |
| 1,000 + | 24.66 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 85 |
| Factory Pack Quantity | 250 |
| Package | Pins | B4QFN (RLG) | 72 |
For more information, please refer to datasheet
Documents
| LMZ31530RLGT Datasheet |
More Information
The LMZ31530 power module is an easy-to-use integrated power solution that combines a 30-A DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This total power solution allows as few as three external components and eliminates the loop compensation and magnetics part selection process.
