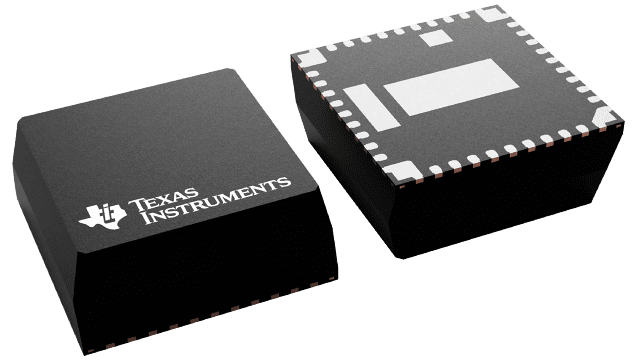

LMZ34202RVQR Texas Instruments - Yeehing Electronics

4.5V to 42V, 2A Step-Down Power Module in QFN Package

Pricing (USD)

Quantity	Unit Price
1 — 99	6.267
100 — 249	5.474
250 — 999	4.22
1,000 +	3.02

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	QFN-43
Output Voltage	2.5 V to 7.5 V
Output Current	2 A
Number of Outputs	1 Output
Input Voltage MAX	42 V
Topology	Buck
Input Voltage MIN	4.5 V
Switching Frequency	200 kHz to 1 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Series	LMZ34202
Packaging	Reel
Input Voltage	4.5 V to 42 V
Operating Temperature Range	- 40 C to + 105 C
Type	DC/DC Converter
Brand	Texas Instruments
Shutdown	Shutdown
Load Regulation	0.3 %
Moisture Sensitive	Yes
Operating Supply Current	2 A
Product Type	Switching Voltage Regulators
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	4.5 V
Tradename	SIMPLE SWITCHER
Unit Weight	0.029210 oz

For more information, please refer to datasheet

Documents

LMZ34202RVQR Datasheet

More Information

The LMZ34202 power module is an easy-to-use integrated power supply that combines a 2-A DC-DC converter with a shielded inductor and passives into a low profile, QFN package. This total power solution allows as few as three external components while maintaining an ability to adjust key parameters to meet specific design requirements.
