Texas Instruments
LMZ36002RVQT
LMZ36002RVQT
Regular price
$3.33 USD
Regular price
Sale price
$3.33 USD
Unit price
per
Couldn't load pickup availability

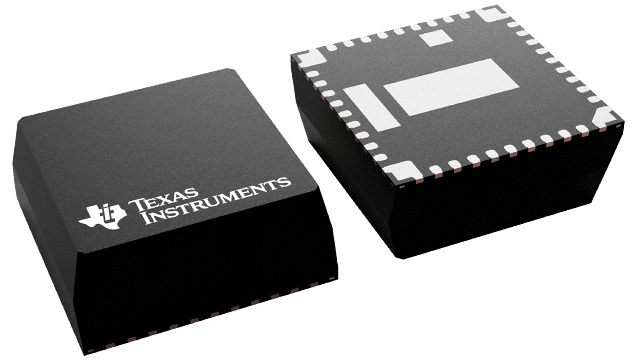

LMZ36002RVQT Texas Instruments - Yeehing Electronics
4.5V to 60V, 2A Step-Down Power Module in QFN Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.907 |
| 100 — 249 | 6.906 |
| 250 — 999 | 5.325 |
| 1,000 + | 3.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-43 |
| Output Voltage | 2.5 V to 7.5 V |
| Output Current | 2 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 60 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 200 kHz to 1 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Series | LMZ36002 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 60 V |
| Operating Temperature Range | - 40 C to + 105 C |
| Type | Synchronous Step Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.3 % |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
| Tradename | SIMPLE SWITCHER |
| Unit Weight | 0.048568 oz |
For more information, please refer to datasheet
Documents
| LMZ36002RVQT Datasheet |
More Information
The LMZ36002 power module is an easy-to-use integrated power supply that combines a 2-A DC/DC converter with a shielded inductor and passives into a low profile, QFN package. This total power solution allows as few as three external components while maintaining an ability to adjust key parameters to meet specific design requirements.
