Description
LMZM23600SILR Texas Instruments - Yeehing Electronics

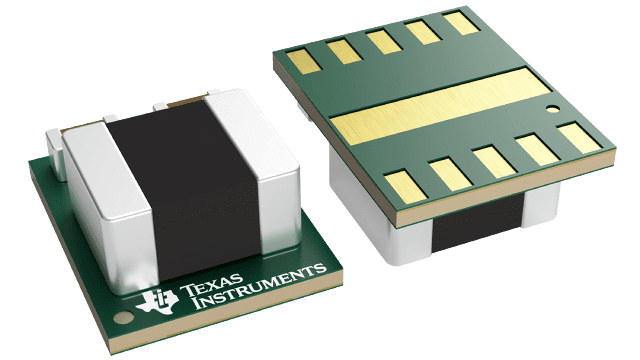

36-V, 0.5-A Step-Down DC/DC Power Module in 3.8-mm × 3-mm Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.547 |
| 100 — 249 | 3.108 |
| 250 — 999 | 2.179 |
| 1,000 + | 1.92 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LMZM23600SILR Datasheet |
More Information
The LMZM23600 integrated-inductor power module is specifically designed for space-constrained industrial applications. It is available in two fixed output voltage options of 5-V and 3.3-V, and an adjustable (ADJ) output voltage option supporting a 1.2-V to 15-V range. The LMZM23600 has an input voltage range of 4-V to 36-V and can deliver up to 500-mA of output current. This power module is extremely easy to use, requiring only 2 external components for a 5-V or 3.3-V output design. All aspects of the LMZM23600 are optimized for performance driven and low EMI industrial applications with space-constrained needs. An open-drain, Power-Good output provides a true indication of the system status and negates the requirement for an additional supervisory component, saving cost and board space. Seamless transition between PWM and PFM modes along with a no-load supply current of only 28 µA ensures high efficiency and superior transient response for the entire load-current range. For easy output current scaling the LMZM23600 is pin-to-pin compatible with the 1000-mA output current capable LMZM23601.
