LMZM23601V3SILR


YeeHing #: Y012-LMZM23601V3SILR
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMZM23601V3SILR Texas Instruments - Yeehing Electronics

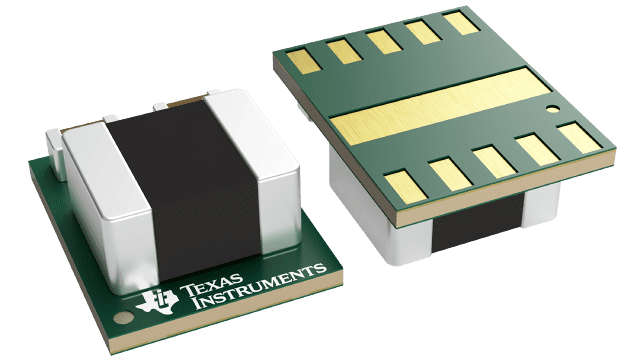

36-V, 1-A Step-Down DC-DC Power Module in 3.8-mm × 3-mm Package

Pricing (USD)

Quantity Unit Price
1 — 99 32.482
100 — 249 24.681
250 — 999 17.892
1,000 + 13.793

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LMZM23601V3SILR Datasheet



More Information

The LMZM23601 integrated-inductor power module is specifically designed for space-constrained industrial applications. It is available in two fixed output voltage options of 5-V and 3.3-V, and an adjustable (ADJ) output voltage option supporting a 1.2-V to 15-V range. The LMZM23601 has an input voltage range of 4-V to 36-V and can deliver up to 1000-mA of output current. This power module is extremely easy to use, requiring only 2 external components for a 5-V or 3.3-V output design. All aspects of the LMZM23601 are optimized for performance driven and low EMI industrial applications with space-constrained needs. An open-drain, Power-Good output provides a true indication of the system status and negates the requirement for an additional supervisory component, saving cost and board space. Seamless transition between PWM and PFM modes along with a no-load supply current of only 28 µA ensures high efficiency and superior transient response for the entire load-current range. For easy output current scaling the LMZM23601 is pin-to-pin compatible with the 500-mA output current capable LMZM23600.
