Texas Instruments
LMZM33602RLRR
LMZM33602RLRR
Regular price
$3.04 USD
Regular price
Sale price
$3.04 USD
Unit price
per
Couldn't load pickup availability

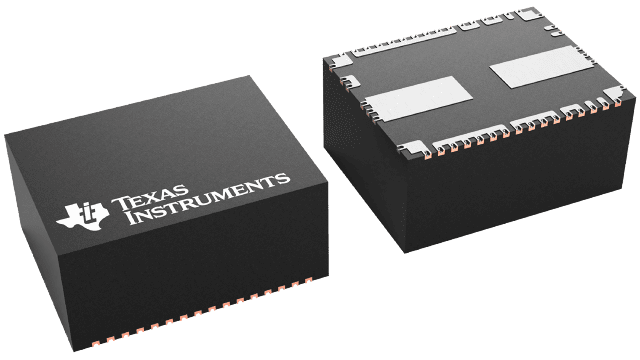

LMZM33602RLRR Texas Instruments - Yeehing Electronics
4V to 36V, 2A Step-Down DC/DC Power Module in Compact 7x9x4mm QFN Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.992 |
| 100 — 249 | 5.7 |
| 250 — 999 | 4.48 |
| 1,000 + | 3.04 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | B2QFN-18 |
| Output Voltage | 1 V to 18 V |
| Output Current | 2 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 36 V |
| Topology | Buck |
| Input Voltage MIN | 4 V |
| Switching Frequency | 200 kHz to 1.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Series | LMZM33602 |
| Packaging | Reel |
| Input Voltage | 4 V to 36 V |
| Operating Temperature Range | - 40 C to + 105 C |
| Quiescent Current | 2 uA |
| Type | Step-Down DC-DC Power Module |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | LMZM33602EVM |
| Load Regulation | 0.004 % |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4 V |
| Unit Weight | 0.016502 oz |
For more information, please refer to datasheet
Documents
| LMZM33602RLRR Datasheet |
More Information
The LMZM33602 power module is an easy-to-use integrated power solution that combines a 2-A, step-down, DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low-profile package. This power solution requires as few as four external components and eliminates the loop compensation and magnetics part selection from the design process.
