Texas Instruments
LMZM33604RLXR
LMZM33604RLXR
Regular price
$4.79 USD
Regular price
Sale price
$4.79 USD
Unit price
per
Couldn't load pickup availability

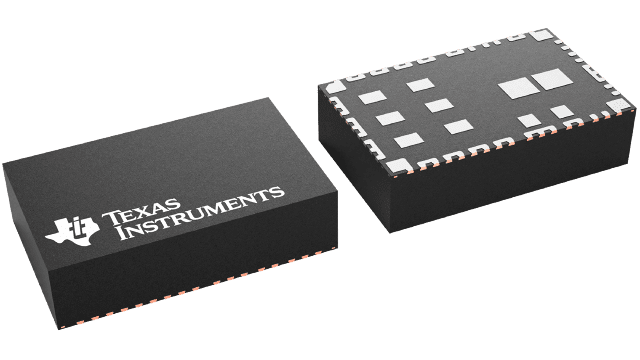

LMZM33604RLXR Texas Instruments - Yeehing Electronics
3.5-V to 36-V input, 1-V to 20-V output, 4-A power module
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.354 |
| 100 — 249 | 9.918 |
| 250 — 999 | 7.647 |
| 1,000 + | 4.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-41 |
| Output Voltage | 1 V to 20 V |
| Output Current | 4 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 36 V |
| Input Voltage MIN | 3.5 V |
| Switching Frequency | 350 kHz to 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Series | LMZM33604 |
| Packaging | Reel |
| Input Voltage | 3.5 V to 36 V |
| Operating Temperature Range | - 40 C to + 105 C |
| Type | DC/DC Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.1 % |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3.5 V |
For more information, please refer to datasheet
Documents
| LMZM33604RLXR Datasheet |
More Information
The LMZM33604 power module is an easy-to-use integrated power solution that combines a 4-A DC/DC converter with power MOSFETs, a shielded inductor, and passives in a low-profile package. This power solution requires as few as four external components and eliminates the loop compensation and inductor part selection from the design process.
