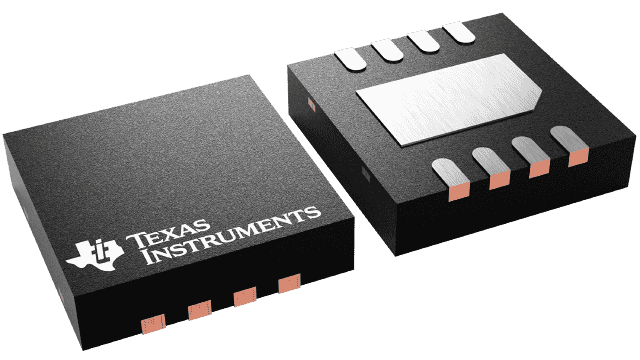

LP2951-33QDRGRQ1 Texas Instruments - Yeehing Electronics

Automotive 100-mA, 30-V, low-dropout voltage regulator with power good & enable

Pricing (USD)

Quantity	Unit Price
1 — 99	0.588
100 — 249	0.452
250 — 999	0.333
1,000 +	0.17

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WSON-8
Output Voltage	3 V, 3.3 V, 5 V
Output Current	100 mA
Number of Outputs	1 Output
Input Voltage MAX	30 V
Input Voltage MIN	30 V
Output Type	Adjustable, Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	380 mV
Qualification	AEC-Q100
Series	LP2951-33-Q1
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Brand	Texas Instruments
Line Regulation	0.03 %
Load Regulation	0.04 %
Moisture Sensitive	Yes
Product Type	LDO Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

LP2951-33QDRGRQ1 Datasheet

More Information

The LP2951-xx-Q1 devices are bipolar, low-dropout voltage regulators that can accommodate a wide input supply-voltage range of up to 35 V. The 8-pin LP2951-xx-Q1 is able to output either a fixed or adjustable output from the same device. By tying the OUTPUT and SENSE pins together, and the FEEDBACK and VTAP pins together, the LP2951-xx-Q1 outputs a fixed 5 V and 3.3 V (depending on the version). Alternatively, by leaving the SENSE and VTAP pins open and connecting FEEDBACK to an external resistor divider, the output can be set to any value between 1.235 V to 30 V.
