LP2989ILD-3.3/NOPB Texas Instruments - Yeehing Electronics
500-mA, 16-V, low-dropout voltage regulator with power good & enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.594 |
| 100 — 249 | 2.273 |
| 250 — 999 | 1.593 |
| 1,000 + | 0.90 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

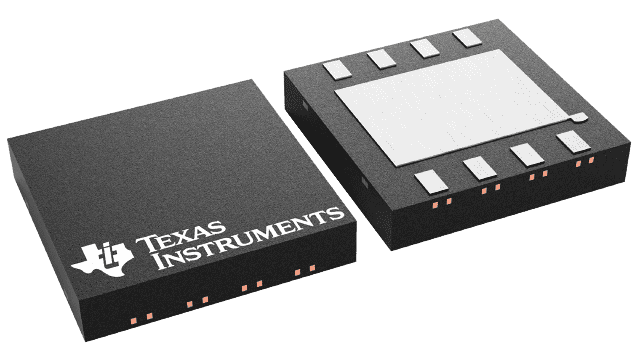

| Package / Case | WSON-8 |
| Output Voltage | 3.3 V |
| Output Current | 500 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Input Voltage MAX | 16 V |
| Input Voltage MIN | 2.1 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 310 mV |
| Series | LP2989 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Micropower Low Noise Ultra LDO Regulators |
| Tolerance | 3.5 % |
| Type | Fixed Output Voltage Regulator |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.003 V at 0.1 mA, 0.2 V at 200 mA, 0.425 V at 500 mA |
| PSRR / Ripple Rejection - Typ | 60 dB |
| Voltage Regulation Accuracy | +/- 1.25 % |
| Ib - Input Bias Current | 110 uA |
| Line Regulation | 0.014 %/V |
| Load Regulation | 0.4 % |
| Moisture Sensitive | Yes |
| Operating Supply Current | 110 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| LP2989ILD-3.3/NOPB Datasheet |
More Information
The LP2989 is a fixed-output 500-mA precision LDO regulator designed for use with ceramic output capacitors.
