Description

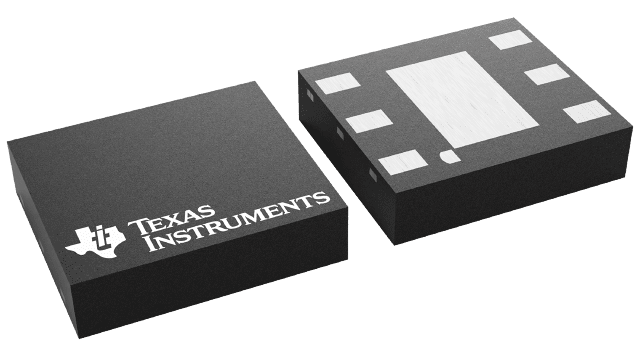

LP2992ILDX-5.0/NOPB Texas Instruments - Yeehing Electronics
250-mA, 16-V, low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.537 |
| 100 — 249 | 2.223 |
| 250 — 999 | 1.559 |
| 1,000 + | 1.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-6 |
| Output Voltage | 5 V |
| Output Current | 0.25 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Input Voltage MAX | 16 V |
| Input Voltage MIN | 2.2 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 450 mV |
| Series | LP2992 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.009 V at 1 mA, 0.125 V at 50 mA, 0.325 V at 150 mA, 0.575 V at 250 mA |
| Voltage Regulation Accuracy | +/- 4 % |
| Ib - Input Bias Current | 65 uA |
| Line Regulation | 0.014 %/V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 65 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
| LP2992ILDX-5.0/NOPB Datasheet |
More Information
The LP2992 is a 250-mA, fixed-output voltage regulator designed to provide ultra-low dropout and low noise in battery-powered applications.
