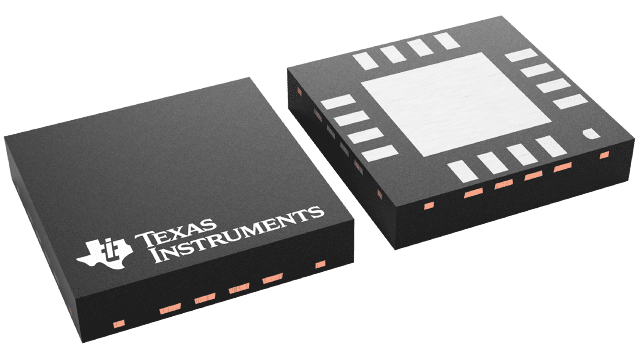

LP2995LQ/NOPB Texas Instruments - Yeehing Electronics

DDR Termination Regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.028
100 — 249	0.79
250 — 999	0.582
1,000 +	0.29

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Voltage Range	1.25 V
Output Current	1.5 A
Input Voltage Range	2.2 V to 5.5 V
Input Current	250 uA
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	WQFN-16
Type	Linear Regulator
Packaging	Reel
Application	DDR Termination
Operating Temperature Range	0 C to + 125 C
Product	DDR Termination Regulator
Series	LP2995
Brand	Texas Instruments
Development Kit	LP2995M-EVAL
Moisture Sensitive	Yes
Operating Supply Current	250 uA
Operating Supply Voltage	2.2 V to 5.5 V
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.001238 oz

For more information, please refer to datasheet

Documents

LP2995LQ/NOPB Datasheet

More Information

The LP2995 linear regulator is designed to meet the JEDEC SSTL-2 and SSTL-3 specifications for termination of DDR-SDRAM. The device contains a high-speed operational amplifier to provide excellent response to load transients. The output stage prevents shoot through while delivering 1.5A continuous current and transient peaks up to 3A in the application as required for DDR-SDRAM termination. The LP2995 also incorporates a VSENSE pin to provide superior load regulation and a VREF output as a reference for the chipset and DDR DIMMS.
