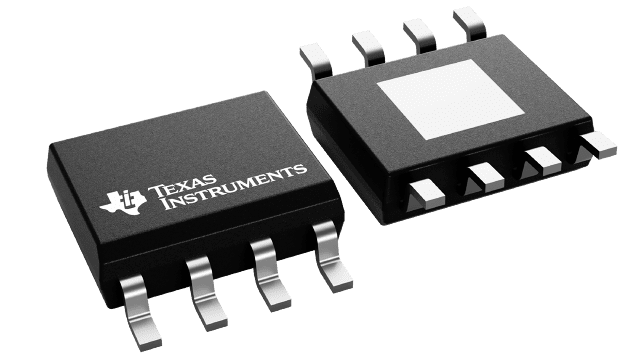

LP2996AMR/NOPB Texas Instruments - Yeehing Electronics

1.5A DDR termination regulator with shutdown pin for DDR2/3/3L

Pricing (USD)

Quantity	Unit Price
1 — 99	1.49
100 — 249	1.23
250 — 999	0.884
1,000 +	0.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Current	1.5 A
Input Voltage Range	2.2 V to 5.5 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SO-PowerPad-8
Type	Linear Regulator
Packaging	Tube
Application	DDR Termination
Operating Temperature Range	0 C to + 125 C
Product	DDR Termination Regulators
Series	LP2996A
Brand	Texas Instruments
Development Kit	LP2998EVAL
Moisture Sensitive	Yes
Operating Supply Current	320 uA
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	95
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002924 oz

For more information, please refer to datasheet

Documents

LP2996AMR/NOPB Datasheet

More Information

The LP2996A linear regulator is designed to meet the JEDEC SSTL-2 specifications for termination of DDR-SDRAM. The device also supports DDR2, DDR3 and DDR3L VTT bus termination with VDDQ min of 1.35V. The device contains a high-speed operational amplifier to provide excellent response to load transients. The output stage prevents shoot through while delivering 1.5A continuous current and transient peaks up to 3A in the application as required for DDR-SDRAM termination. The LP2996A also incorporates a VSENSE pin to provide superior load regulation and a VREF output as a reference for the chipset and DIMMs.
