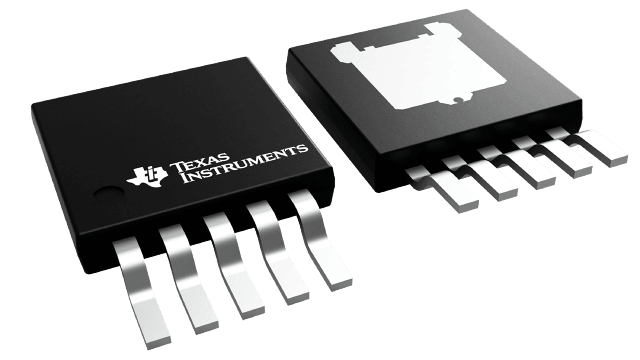

LP38503TJ-ADJ/NOPB Texas Instruments - Yeehing Electronics
3-A, adjustable ultra-low-dropout voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.792 |
| 100 — 249 | 1.48 |
| 250 — 999 | 1.063 |
| 1,000 + | 0.46 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 1,000 |
| Package | Pins | TO-263 (NDQ) | 5 |
For more information, please refer to datasheet
Documents
| LP38503TJ-ADJ/NOPB Datasheet |
More Information
TIs FlexCap low-dropout (LDO) linear regulators feature unique compensation that allow use of any type of output capacitor with no limits on minimum or maximum equivalent series resistance (ESR). The LP38501 and LP38503 series of LDOs operate from a 2.7-V to 5.5-V input supply. These ultra-low-dropout linear regulators respond very quickly to step changes in load, making them suitable for low-voltage microprocessor applications. Developed on a CMOS process (utilizing a PMOS pass transistor) the LP38501-ADJ and LP38503-ADJ have low quiescent currents that change little with load current.
