Texas Instruments

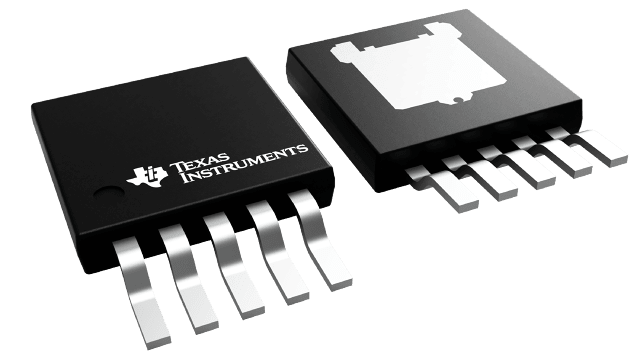

LP38511TJ-ADJ/NOPB
LP38511TJ-ADJ/NOPB
Couldn't load pickup availability
LP38511TJ-ADJ/NOPB Texas Instruments - Yeehing Electronics
800-mA, adjustable low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.478 |
| 100 — 249 | 1.221 |
| 250 — 999 | 0.877 |
| 1,000 + | 0.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-263-5 |
| Output Voltage | 500 mV to 3.3 V |
| Output Current | 800 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 2.25 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 250 mV |
| Series | LP38511-ADJ |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Fast-transient Adjustable LDO Linear Regulators |
| Tolerance | +/- 2 % |
| Type | Low Dropout Linear Regulator |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.26 V at 800 mA |
| PSRR / Ripple Rejection - Typ | 73 dB |
| Voltage Regulation Accuracy | +/- 2 % |
| Ib - Input Bias Current | 7.5 mA |
| Line Regulation | 0.03 %/V |
| Load Regulation | 0.1 %/A |
| Operating Supply Current | 7.5 mA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LP38511TJ-ADJ/NOPB Datasheet |
More Information
The LP38511-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38511-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38511-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 uF ceramic capacitors, and has an adjustable output voltage. The LP38511-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations.
