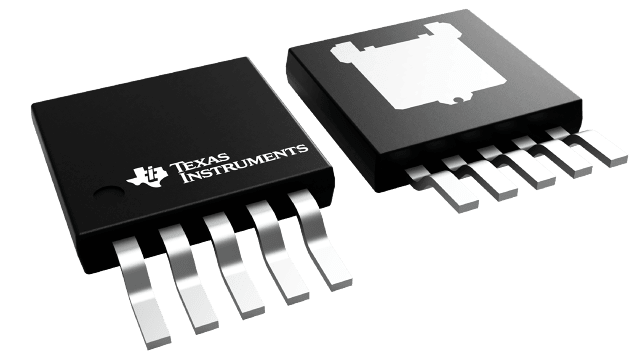

LP38512TJ-ADJ/NOPB Texas Instruments - Yeehing Electronics
1.5-A, adjustable ultra-low-dropout voltage regulator with low noise & enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.577 |
100 — 249 | 1.302 |
250 — 999 | 0.936 |
1,000 + | 0.49 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | TO-263-5 |
Output Voltage | Adj |
Output Current | 1.5 A |
Number of Outputs | 1 Output |
Polarity | Positive |
Input Voltage MAX | 5.5 V |
Input Voltage MIN | 2.25 V |
Output Type | Adjustable |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 300 mV |
Series | LP38512-ADJ |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
Dropout Voltage - Max | 0.3 V at 1.5 A |
Output Voltage Range | 500 mV to 4.5 V |
PSRR / Ripple Rejection - Typ | 73 dB |
Voltage Regulation Accuracy | +/- 2 % |
Ib - Input Bias Current | 10 mA |
Line Regulation | 0.03 % / V |
Load Regulation | 0.1 %/A |
Operating Supply Current | 10 mA |
Pd - Power Dissipation | Internally Limited |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 1000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.044110 oz |
For more information, please refer to datasheet
Documents
LP38512TJ-ADJ/NOPB Datasheet |
More Information
The LP38512-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38512-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38512-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 μF ceramic capacitors, and has an adjustable output voltage. The LP38512-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations.
