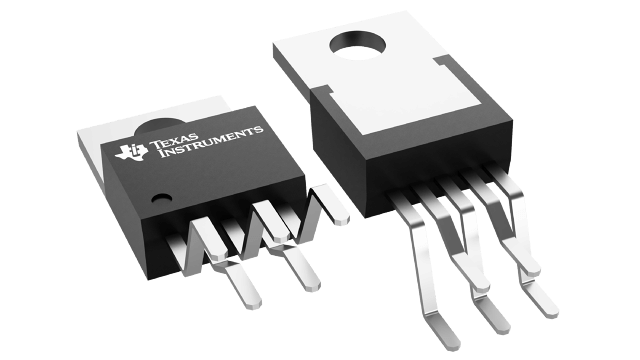

LP38513T-1.8/NOPB Texas Instruments - Yeehing Electronics
3-A, ultra-low-dropout voltage regulator with power good & enable for 1.8 V
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.838 |
| 100 — 249 | 3.363 |
| 250 — 999 | 2.358 |
| 1,000 + | 1.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-220-5 |
| Output Voltage | 1.8 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 2.25 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 425 mV |
| Series | LP38513 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.425 V at 3 A |
| Voltage Regulation Accuracy | +/- 1.6 % |
| Ib - Input Bias Current | 20 mA |
| Line Regulation | 0.03 %/V |
| Load Regulation | 0.1 %/A |
| Operating Supply Current | 10 mA |
| Product Type | LDO Voltage Regulators |
| Reference Voltage | 2.5 V |
| Factory Pack Quantity | 45 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.105822 oz |
For more information, please refer to datasheet
Documents
| LP38513T-1.8/NOPB Datasheet |
More Information
The LP38513 fast-response ultra-low dropout linear regulator operates from a 2.25-V to 5.5-V input supply. This device responds very quickly to step changes in line or load conditions, making it suitable for low-voltage microprocessor applications. Developed on a CMOS process, with a PMOS pass transistor, the LP38513 has low quiescent-current operation independent of the output load current. Ground Pin Current: Typically 12 mA at 3-A load current.Disable Mode: Typically 60 µA quiescent current when the enable (EN) pin is pulled low.ERROR Flag: The ERROR flag goes low if VOUT falls more than typically 15% below the nominal value.Precision Output Voltage: A specified VOUT accuracy of ±2.6% with TJ from 0°C to 125°C.
