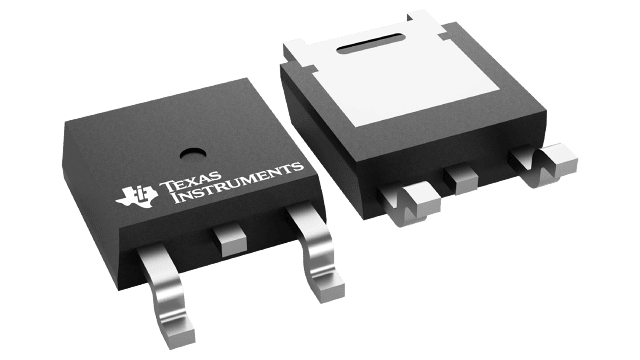

LP38690DTX-2.5/NOPB Texas Instruments - Yeehing Electronics

1-A, 10-V, low-dropout voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.454
100 — 249	1.201
250 — 999	0.863
1,000 +	0.45

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-252-3
Output Voltage	2.5 V
Output Current	1 A
Number of Outputs	1 Output
Polarity	Positive
Quiescent Current	100 uA
Input Voltage MAX	10 V
Input Voltage MIN	2.7 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	450 mV
Series	LP38690
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Brand	Texas Instruments
Dropout Voltage - Max	0.145 V at 100 mA, 1.3 V at 1 A
Voltage Regulation Accuracy	+/- 2.5 %
Ib - Input Bias Current	55 uA
Line Regulation	0.03 %/V
Load Regulation	1.8 %/A
Moisture Sensitive	Yes
Operating Supply Current	55 uA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.139332 oz

For more information, please refer to datasheet

Documents

LP38690DTX-2.5/NOPB Datasheet

More Information

The LP38690 and LP38692 low-dropout CMOS linear regulators provide tight output tolerance (2.5% typical), extremely low dropout voltage (450 mV at a 1-A load current, VOUT = 5 V), and excellent AC performance utilizing ultra low ESR ceramic output capacitors.
