Texas Instruments
LP38691QSD-1.8/NOPB
LP38691QSD-1.8/NOPB
Regular price
$0.56 USD
Regular price
Sale price
$0.56 USD
Unit price
per
Couldn't load pickup availability
LP38691QSD-1.8/NOPB Texas Instruments - Yeehing Electronics
Automotive 500-mA, 10-V, low-dropout voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.559 |
| 100 — 249 | 1.288 |
| 250 — 999 | 0.925 |
| 1,000 + | 0.56 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

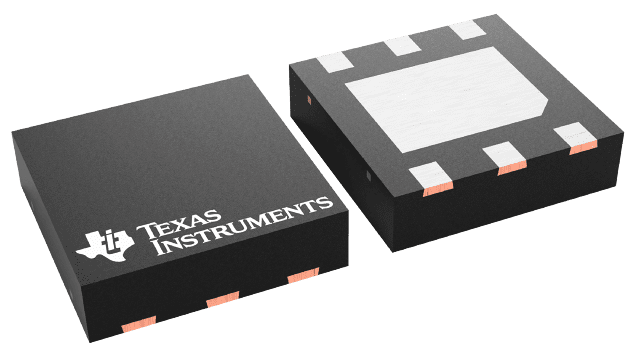

| Package / Case | WSON-6 |
| Output Voltage | 1.8 V |
| Output Current | 500 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 10 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 250 mV |
| Series | LP38691-Q1 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Voltage Regulation Accuracy | 2 % |
| Load Regulation | 1.8 % |
| Operating Supply Current | 55 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
| LP38691QSD-1.8/NOPB Datasheet |
More Information
The LP3869x low-dropout CMOS linear regulators provide tight output tolerance (2% typical), extremely low dropout voltage (250 mV at 500-mA load current, VOUT = 5 V), and excellent AC performance using ultralow equivalent series resistance (ESR) ceramic output capacitors.
