Texas Instruments
LP38692SD-ADJ/NOPB
LP38692SD-ADJ/NOPB
Regular price
$0.55 USD
Regular price
Sale price
$0.55 USD
Unit price
per
Couldn't load pickup availability

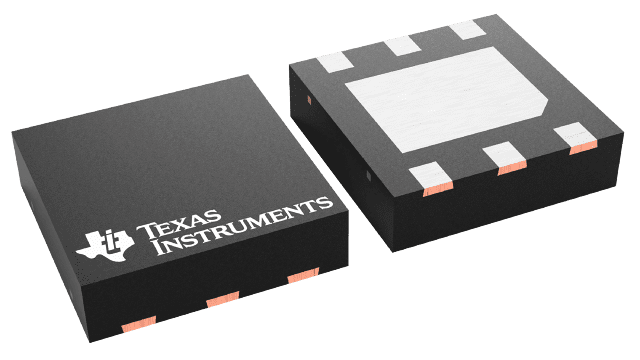

LP38692SD-ADJ/NOPB Texas Instruments - Yeehing Electronics
1-A, 10-V, adjustable low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.4 |
| 100 — 249 | 1.156 |
| 250 — 999 | 0.831 |
| 1,000 + | 0.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-6 |
| Output Voltage | 1.25 V to 9 V |
| Output Current | 1 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 100 uA |
| Input Voltage MAX | 10 V |
| Input Voltage MIN | 2.7 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 250 mV |
| Series | LP38692-ADJ |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 1.6 V at 1A, 0.145 V at 100 mA, 1.3 V at 1A, 0.11 V at 100 mA, 1 V at 1A, 0.1 V at 100 mA, 0.8 V at 1A |
| Voltage Regulation Accuracy | +/- 2.5 % |
| Ib - Input Bias Current | 55 uA |
| Line Regulation | 0.03 % / V |
| Load Regulation | 1.8 %/A |
| Operating Supply Current | 55 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
| LP38692SD-ADJ/NOPB Datasheet |
More Information
The LP38690-ADJ and LP38692-ADJ low dropout CMOS linear regulators provide 2.5% precision reference voltage, extremely low dropout voltage (450 mV at 1-A load current, VOUT = 5 V) and excellent AC performance utilizing ultralow equivalent series resistance (ESR) ceramic output capacitors.
