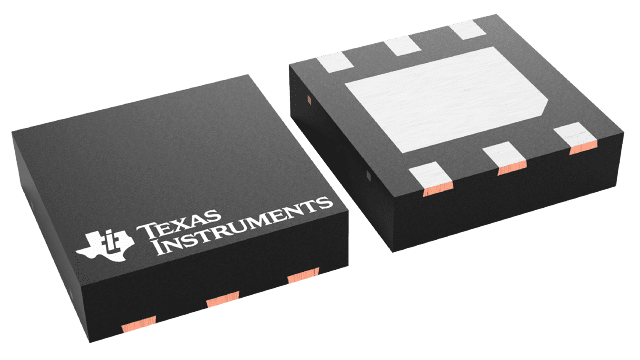

LP38693SD-1.8/NOPB


YeeHing #: Y012-LP38693SD-1.8/NOPB
Inventory: 4200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LP38693SD-1.8/NOPB Texas Instruments - Yeehing Electronics

500-mA, 10-V, low-dropout voltage regulator with enable

Pricing (USD)

Quantity Unit Price
1 — 99 1.195
100 — 249 0.92
250 — 999 0.677
1,000 + 0.34

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LDO Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case WSON-6
Output Voltage 1.8 V
Output Current 500 mA
Number of Outputs 1 Output
Polarity Positive
Quiescent Current 100 uA
Input Voltage MAX 10 V
Input Voltage MIN 2.7 V
Output Type Fixed
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Dropout Voltage 250 mV
Series LP38693
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Product LDO CMOS Linear Regulators
Tolerance 4 %
Type Low Dropout Linear Regulator
Brand Texas Instruments
PSRR / Ripple Rejection - Typ 55 dB
Voltage Regulation Accuracy +/- 2 %
Ib - Input Bias Current 55 uA
Line Regulation 0.03 %/V
Load Regulation 1.8 %/A
Operating Supply Current 55 uA
Product Type LDO Voltage Regulators
Factory Pack Quantity 1000
Subcategory PMIC - Power Management ICs
Unit Weight 0.000342 oz

For more information, please refer to datasheet

Documents

LP38693SD-1.8/NOPB Datasheet

More Information

The LP3869x low-dropout CMOS linear regulators provide tight output tolerance (2% typical), extremely low dropout voltage (250 mV at 500-mA load current, VOUT = 5 V), and excellent AC performance using ultralow equivalent series resistance (ESR) ceramic output capacitors.
