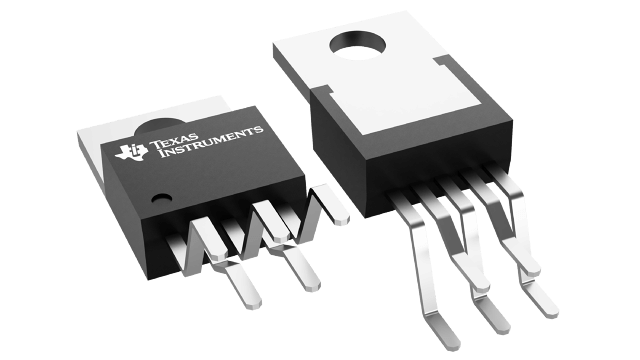

LP38855T-0.8/NOPB Texas Instruments - Yeehing Electronics
1.5-A, low-VIN (0.98-V), ultra-low-dropout voltage regulator with enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.094 |
100 — 249 | 1.73 |
250 — 999 | 1.243 |
1,000 + | 0.65 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-220-5 |
Output Voltage | 0.8 V |
Output Current | 1.5 A |
Number of Outputs | 1 Output |
Polarity | Positive |
Input Voltage MAX | 5.5 V |
Input Voltage MIN | 0.98 V |
Output Type | Fixed |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 130 mV |
Series | LP38855 |
Packaging | Tube |
Operating Temperature Range | - 40 C to + 125 C |
Product | High-accuracy LDO Linear Regulators |
Tolerance | +/- 3 |
Type | LDO Linear Regulator |
Brand | Texas Instruments |
Dropout Voltage - Max | 0.165 V at 1500 mA |
PSRR / Ripple Rejection - Typ | 80 dB |
Voltage Regulation Accuracy | +/- 2 % |
Ib - Input Bias Current | 22 mA |
Line Regulation | 0.04 %/V |
Load Regulation | 0.2 %/A |
Operating Supply Current | 10 mA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 45 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.105822 oz |
For more information, please refer to datasheet
Documents
LP38855T-0.8/NOPB Datasheet |
More Information
The LP38855 is a high-current, fast-response regulator which can maintain output voltage regulation with an extremely low input to output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIAS provides power for the internal bias and control circuits, as well as drive for the gate of the N-MOS power transistor, while VIN supplies power to the load. The use of an external bias rail allows the part to operate from ultra low VIN voltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability.
