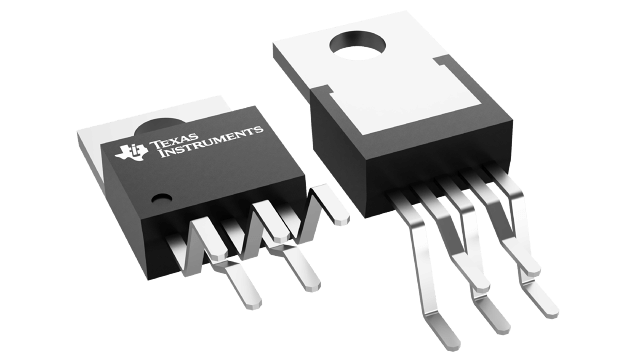

LP38858T-1.2/NOPB Texas Instruments - Yeehing Electronics
1.5-A, low-VIN (0.98-V), high-accuracy, ultra-low-dropout voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.094 |
| 100 — 249 | 1.73 |
| 250 — 999 | 1.243 |
| 1,000 + | 0.65 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-220-5 |
| Output Voltage | 1.2 V |
| Output Current | 1.5 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 12 mA |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 0.98 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 180 mV |
| Series | LP38858 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | High-accuracy LDO Linear Regulators |
| Tolerance | +/- 3 |
| Type | LDO Linear Regulator |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.165 V At 1.5 A |
| PSRR / Ripple Rejection - Typ | 80 dB |
| Voltage Regulation Accuracy | +/- 1 % |
| Ib - Input Bias Current | 11 mA |
| Line Regulation | 0.04 %/V |
| Load Regulation | 0.2 %/A |
| Operating Supply Current | 10 mA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 45 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.105822 oz |
For more information, please refer to datasheet
Documents
| LP38858T-1.2/NOPB Datasheet |
More Information
The LP38858 is a high current, fast response regulator which can maintain output voltage regulation with extremely low input to output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIAS provides voltage to drive the gate of the N-MOS power transistor, while VIN is the input voltage which supplies power to the load. The use of an external bias rail allows the part to operate from ultra low VIN voltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability.
