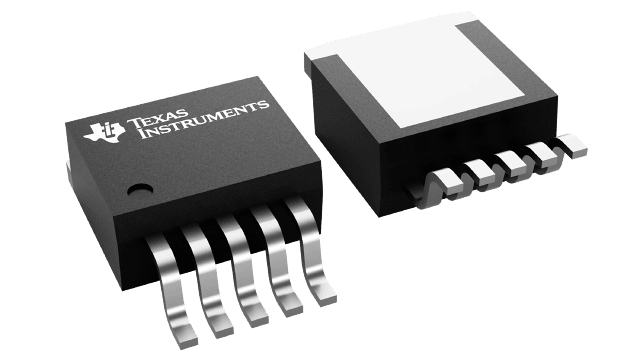

LP38859S-1.2/NOPB Texas Instruments - Yeehing Electronics
3-A, low-VIN (1.15-V), high-accuracy, ultra-low-dropout voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.011 |
100 — 249 | 3.27 |
250 — 999 | 2.57 |
1,000 + | 1.53 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | E |
Mounting Style | SMD/SMT |
Package / Case | TO-263-5 |
Output Voltage | 1.2 V |
Output Current | 3 A |
Number of Outputs | 1 Output |
Polarity | Positive |
Quiescent Current | 12 mA |
Input Voltage MAX | 5.5 V |
Input Voltage MIN | 1.15 V |
Output Type | Fixed |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 350 mV |
Series | LP38859 |
Packaging | Tube |
Operating Temperature Range | - 40 C to + 125 C |
Product | High-accuracy LDO Linear Regulators |
Tolerance | +/- 3 |
Type | LDO Linear Regulator |
Brand | Texas Instruments |
Dropout Voltage - Max | 0.3 V at 3 A |
PSRR / Ripple Rejection - Typ | 80 dB |
Voltage Regulation Accuracy | +/- 1 % |
Ib - Input Bias Current | 11 mA |
Line Regulation | 0.04 %/V |
Load Regulation | 0.2 %/A |
Moisture Sensitive | Yes |
Operating Supply Current | 10 mA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 45 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.056128 oz |
For more information, please refer to datasheet
Documents
LP38859S-1.2/NOPB Datasheet |
More Information
The LP38859 is a high-current, fast-response regulator which can maintain output voltage regulation with extremely low input to output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIAS provides voltage to drive the gate of the N-MOS power transistor, while VIN is the input voltage which supplies power to the load. The use of an external bias rail allows the part to operate from ultra-low VIN voltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability.
