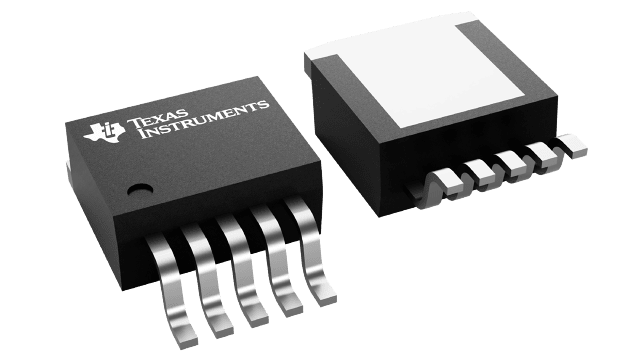

LP38859SX-1.2/NOPB Texas Instruments - Yeehing Electronics
3-A, low-VIN (1.15-V), high-accuracy, ultra-low-dropout voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.864 |
| 100 — 249 | 3.15 |
| 250 — 999 | 2.476 |
| 1,000 + | 1.47 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-263-5 |
| Output Voltage | 1.2 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 12 mA |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 1.15 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 350 mV |
| Series | LP38859 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.3 V At 3 A |
| Voltage Regulation Accuracy | +/- 1 % |
| Ib - Input Bias Current | 11 mA |
| Line Regulation | 0.04 %/V |
| Load Regulation | 0.2 %/A |
| Moisture Sensitive | Yes |
| Operating Supply Current | 10 mA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.056128 oz |
For more information, please refer to datasheet
Documents
| LP38859SX-1.2/NOPB Datasheet |
More Information
The LP38859 is a high-current, fast-response regulator which can maintain output voltage regulation with extremely low input to output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIAS provides voltage to drive the gate of the N-MOS power transistor, while VIN is the input voltage which supplies power to the load. The use of an external bias rail allows the part to operate from ultra-low VIN voltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability.
