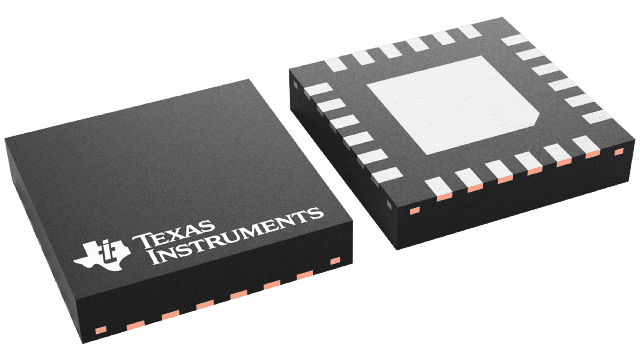

LP3943ISQ Texas Instruments - Yeehing Electronics
16 channel RGB/White LED driver with independent string control via SMBUS/I2C
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.545 |
100 — 249 | 2.23 |
250 — 999 | 1.564 |
1,000 + | 0.75 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LED Lighting Drivers |
RoHS | Y |
Supply Current - Max | 550 uA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-24 |
Series | LP3943 |
Packaging | Reel |
Features | I2C Control |
Height | 0.8 mm |
Length | 4 mm |
Operating Temperature Range | - 40 C to + 85 C |
Width | 4 mm |
Brand | Texas Instruments |
Low Level Output Current | 25000 uA |
Pd - Power Dissipation | 400 mW |
Product Type | LED Lighting Drivers |
Factory Pack Quantity | 1000 |
Subcategory | Driver ICs |
Unit Weight | 0.001178 oz |
For more information, please refer to datasheet
Documents
LP3943ISQ Datasheet |
More Information
The LP3943 is an integrated device capable of independently driving 16 LEDs. This device also contains an internal precision oscillator that provides all the necessary timing required for driving each LED. Two prescaler registers, along with two PWM registers, provide a versatile duty-cycle control. The LP3943 contains the ability to dim LEDs in SMBUS/I2C applications where it is required, to cut down on bus traffic.
