LP3954TLX/NOPB


YeeHing #: Y012-LP3954TLX/NOPB
Inventory: 4600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LP3954TLX/NOPB Texas Instruments - Yeehing Electronics

Advanced lighting management unit

Pricing (USD)

Quantity Unit Price
1 — 99 3.68
100 — 249 3.0
250 — 999 2.358
1,000 + 1.40

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LED Lighting Drivers
RoHS Y
Number of Channels 13 Channel
Input Voltage 3 V to 7.2 V
Supply Current - Max 400 uA
Minimum Operating Temperature - 30 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT

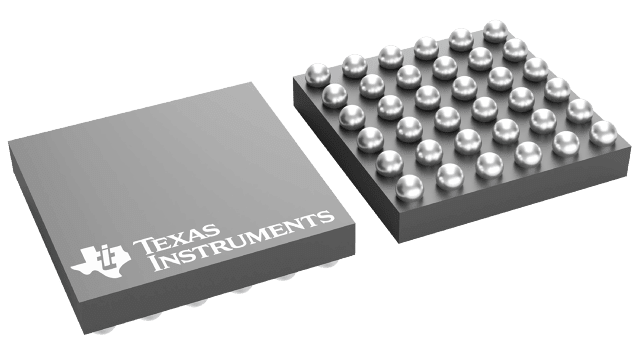

Package / Case DSBGA-36
Series LP3954
Packaging Reel
Features Analog/PWM Mixed Dimming, Constant Current, I2C Control
Height 0.36 mm
Length 3 mm
Operating Temperature Range - 30 C to + 85 C
Output Voltage 5.3 V
Width 3 mm
Brand Texas Instruments
Operating Supply Voltage 3 V to 7.2 V
Product Type LED Lighting Drivers
Factory Pack Quantity 1000
Subcategory Driver ICs

For more information, please refer to datasheet

Documents

LP3954TLX/NOPB Datasheet

More Information

LP3954 is an advanced lighting management unit for handheld devices. It drives any phone lights including display backlights, RGB, keypad and camera flash LEDs. The boost DC-DC converter drives high current loads with high efficiency. White LED backlight drivers are high efficiency low voltage structures with excellent matching and automatic fade in/ fade out function. The new stand-alone command based RGB controller is feature rich and easy to configure. Built-in audio synchronization feature allows user to synchronize the color LEDs to audio input. Integrated high current driver can drive camera flash LED or motor/vibra. Internal ADC can be used for ambient light or temperature sensing. The flexible SPI/I2C interface allows easy control of LP3954. Small DSBGA package together with minimum number of external components is a best fit for handheld devices.
