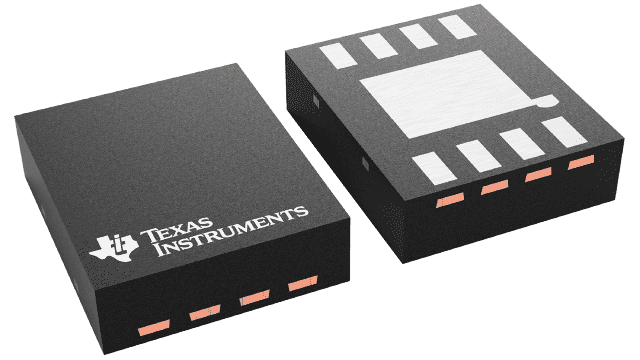

LP3982ILD-3.3/NOPB Texas Instruments - Yeehing Electronics
300-mA, high-accuracy, low-dropout voltage regulator with power good & enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.632 |
| 100 — 249 | 0.486 |
| 250 — 999 | 0.358 |
| 1,000 + | 0.18 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Output Voltage | 3.3 V |
| Output Current | 300 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Input Voltage MAX | 6 V |
| Input Voltage MIN | 2.5 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Dropout Voltage | 120 mV |
| Series | LP3982 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Mircopower Ultra LDO Low Noise CMOS Regulators |
| Tolerance | +/- 3 % |
| Type | Low dropout CMOS Linear Regulator |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.22 V at 200 mA |
| Voltage Regulation Accuracy | +/- 2 % |
| Ib - Input Bias Current | 90 uA |
| Line Regulation | 0.01 %/V |
| Load Regulation | 0.002 %/mA |
| Moisture Sensitive | Yes |
| Operating Supply Current | 90 uA |
| Pd - Power Dissipation | 4.5 mW |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| LP3982ILD-3.3/NOPB Datasheet |
More Information
The LP3982 low-dropout (LDO) CMOS linear regulator is available in 1.8-V, 2.5-V, 2.82-V, 3-V,
