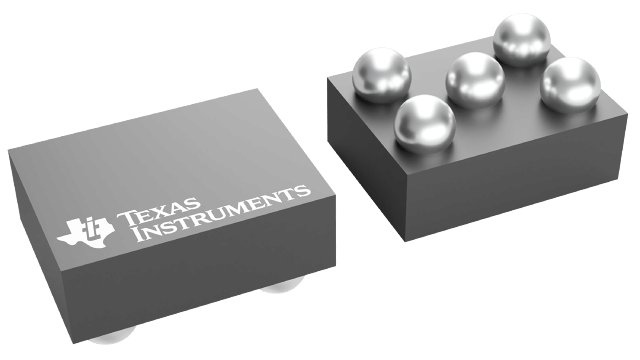

LP3985ITL-2.6/NOPB


YeeHing #: Y012-LP3985ITL-2.6/NOPB
Inventory: 5200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LP3985ITL-2.6/NOPB Texas Instruments - Yeehing Electronics

150-mA, low-dropout voltage regulator with bypass & enable

Pricing (USD)

Quantity Unit Price
1 — 99 0.509
100 — 249 0.391
250 — 999 0.288
1,000 + 0.14

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LDO Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case DSBGA-5
Output Voltage 2.6 V
Output Current 150 mA
Number of Outputs 1 Output
Polarity Positive
Quiescent Current 250 uA
Input Voltage MAX 6 V
Input Voltage MIN 2.5 V
Output Type Fixed
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Dropout Voltage 60 mV
Series LP3985
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Product Mircopower Ultra LDO Low Noise CMOS Regulators
Tolerance +/- 3 %
Type Low dropout low quiescent current Regulator
Brand Texas Instruments
Dropout Voltage - Max 0.002 V at 1 mA, 0.035 V at 50 mA, 0.07 V at 100 mA, 0.1 V at 150 mA
PSRR / Ripple Rejection - Typ 50 dB
Voltage Regulation Accuracy +/- 2 %
Ib - Input Bias Current 155 uA
Line Regulation +/- 0.1 %
Load Regulation 0.0004 %
Operating Supply Current 85 uA
Pd - Power Dissipation 244 mW
Product Type LDO Voltage Regulators
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.000056 oz

For more information, please refer to datasheet

Documents

LP3985ITL-2.6/NOPB Datasheet

More Information

The LP3985 is designed for portable and wireless applications with demanding performance and space requirements. LP3985 performance is optimized for battery-powered systems to deliver ultra low noise, extremely low dropout voltage, and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life.
