Texas Instruments

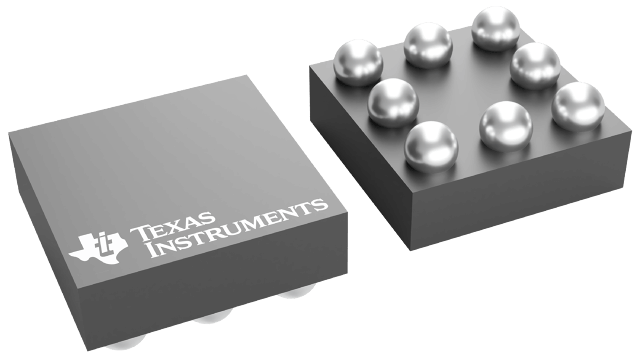

LP3986TL-2518/NOPB
LP3986TL-2518/NOPB
Regular price
$0.27 USD
Regular price
Sale price
$0.27 USD
Unit price
per
Couldn't load pickup availability
LP3986TL-2518/NOPB Texas Instruments - Yeehing Electronics
300-mA, dual-channel adjustable ultra-low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.939 |
| 100 — 249 | 0.722 |
| 250 — 999 | 0.532 |
| 1,000 + | 0.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| Output Voltage | 2.5 V, 1.8 V |
| Output Current | 500 mA |
| Number of Outputs | 2 Output |
| Polarity | Positive |
| Quiescent Current | 130 uA |
| Input Voltage MAX | 6 V |
| Input Voltage MIN | 2.7 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 60 mV |
| Series | LP3986 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Dual Mircopower Ultra LDO CMOS Voltage Regulators |
| Tolerance | +/- 3 % |
| Type | Low dropout low quiescent current Regulator |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.002 V at 1 mA, 0.1 V at 150 mA |
| PSRR / Ripple Rejection - Typ | 60 dB |
| Voltage Regulation Accuracy | +/- 2.5 % |
| Ib - Input Bias Current | 75 uA |
| Line Regulation | 0.006 % |
| Load Regulation | 0.003 % |
| Operating Supply Current | 115 uA |
| Pd - Power Dissipation | 250 mW |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
| LP3986TL-2518/NOPB Datasheet |
More Information
The LP3986 is a 150 mA dual low dropout regulator designed for portable and wireless applications with demanding performance and board space requirements.
