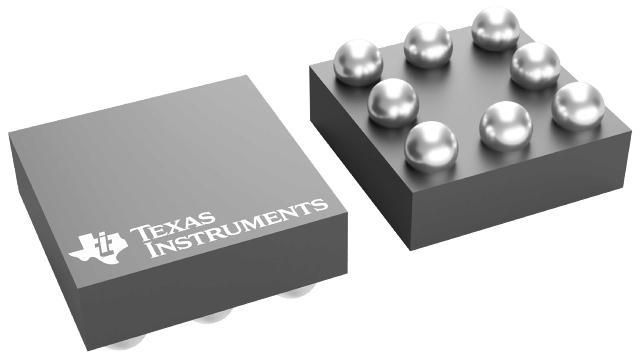

LP3986TL-2828/NOPB Texas Instruments - Yeehing Electronics

300-mA, dual-channel adjustable ultra-low-dropout voltage regulator with enable

Pricing (USD)

Quantity	Unit Price
1 — 99	0.939
100 — 249	0.722
250 — 999	0.532
1,000 +	0.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	DSBGA-8
Output Voltage	2.8 V
Output Current	500 mA
Number of Outputs	2 Output
Polarity	Positive
Quiescent Current	130 uA
Input Voltage MAX	6 V
Input Voltage MIN	2.7 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	60 mV
Series	LP3986
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Product	Dual Mircopower Ultra LDO CMOS Voltage Regulators
Tolerance	+/- 3 %
Type	Low dropout low quiescent current Regulator
Brand	Texas Instruments
Dropout Voltage - Max	0.002 V at 1 mA, 0.1 V at 150 mA
PSRR / Ripple Rejection - Typ	60 dB
Voltage Regulation Accuracy	+/- 2.5 %
Ib - Input Bias Current	75 uA
Line Regulation	0.006 %
Load Regulation	0.003 %
Operating Supply Current	115 uA
Pd - Power Dissipation	250 mW
Product Type	LDO Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000081 oz

For more information, please refer to datasheet

Documents

LP3986TL-2828/NOPB Datasheet

More Information

The LP3986 is a 150 mA dual low dropout regulator designed for portable and wireless applications with demanding performance and board space requirements.
