LP3991TLX-1.8/NOPB Texas Instruments - Yeehing Electronics

300-mA, low-dropout voltage regulator with enable

Pricing (USD)

Quantity	Unit Price
1 — 99	0.543
100 — 249	0.418
250 — 999	0.308
1,000 +	0.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

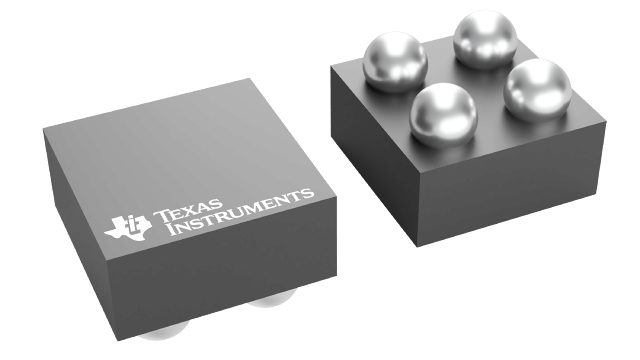

Package / Case	DSBGA-4
Output Voltage	1.8 V
Output Current	0.3 A
Number of Outputs	1 Output
Polarity	Positive
Quiescent Current	100 uA
Input Voltage MAX	4 V
Input Voltage MIN	1.65 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	75 mV
Series	LP3991
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Brand	Texas Instruments
Dropout Voltage - Max	0.09 V at 150 mA, 0.18 V at 300 mA
Voltage Regulation Accuracy	+/- 1 %
Ib - Input Bias Current	50 uA
Operating Supply Current	50 uA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LP3991TLX-1.8/NOPB Datasheet

More Information

Operating from a minimum input voltage of 1.65 V, the LP3991 LDO has been designed to provide fixed stable output voltages for load currents up to 300 mA. This device is suitable where accurate low voltages are required from low input voltage sources and is therefore suitable for post regulation of switched mode regulators. In such applications, significant improvements in performance and EMI can be realized, with little reduction in overall efficiency. The LP3991 provides fixed outputs as low as 1.2 V from a wide input range from 1.65 V to 4 V Using the enable (EN) pin, the device may be controlled to provide a shutdown state, in which negligible supply current is drawn.
