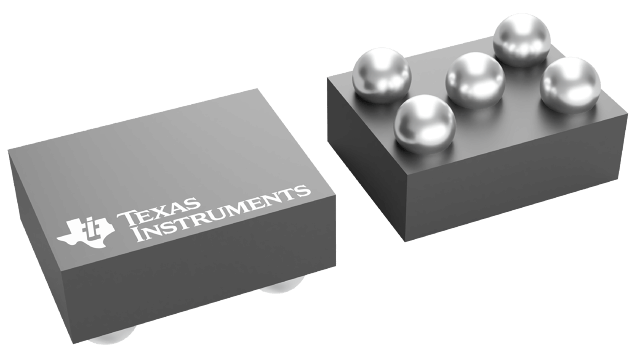

LP3995ITL-2.5/NOPB Texas Instruments - Yeehing Electronics
150-mA, low-dropout voltage regulator with active output discharge & bypass
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.467 |
100 — 249 | 0.359 |
250 — 999 | 0.264 |
1,000 + | 0.13 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-5 |
Output Voltage | 2.5 V |
Output Current | 0.15 A |
Number of Outputs | 1 Output |
Polarity | Positive |
Quiescent Current | 150 uA |
Input Voltage MAX | 6 V |
Input Voltage MIN | 2.5 V |
Output Type | Fixed |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 60 mV |
Series | LP3995 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Product | Micropower CMOS Voltage Regulators |
Tolerance | +/- 3 % |
Type | Accurate Output Voltage |
Brand | Texas Instruments |
Dropout Voltage - Max | 0.002 V at 1 mA, 0.1 V at 150 mA |
PSRR / Ripple Rejection - Typ | 60 dB |
Voltage Regulation Accuracy | +/- 2 % |
Ib - Input Bias Current | 85 uA |
Line Regulation | +/- 0.1 % |
Load Regulation | 0.0004 %/mA |
Operating Supply Current | 85 uA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
LP3995ITL-2.5/NOPB Datasheet |
More Information
The LP3995 linear regulator is designed to meet the requirements of portable battery-powered applications, providing an accurate output voltage with low noise and low quiescent current. Ideally suited for powering RF and analog devices, this device can also be used to meet more general circuit needs in which a fast turnoff is essential.
