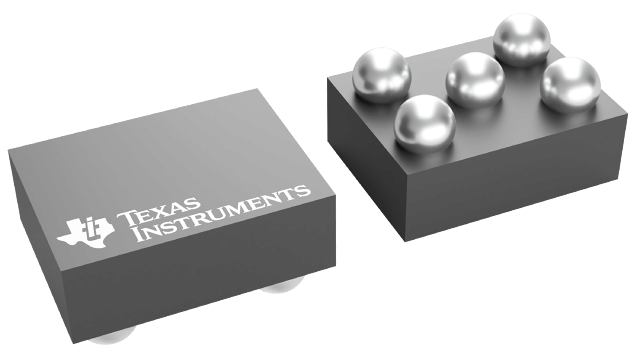

LP3999ITL-2.4/NOPB Texas Instruments - Yeehing Electronics

150-mA, low-noise, low-dropout voltage regulator with enable

Pricing (USD)

Quantity	Unit Price
1 — 99	0.761
100 — 249	0.585
250 — 999	0.431
1,000 +	0.22

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	DSBGA-5
Output Voltage	2.4 V
Output Current	0.15 A
Number of Outputs	1 Output
Polarity	Positive
Quiescent Current	150 uA
Input Voltage MAX	6 V
Input Voltage MIN	2.5 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	60 mV
Series	LP3999
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Product	Low Noise Voltage Regulators
Tolerance	- 75 mV
Type	Accurate Output Voltage
Brand	Texas Instruments
Dropout Voltage - Max	100 mV
PSRR / Ripple Rejection - Typ	60 dB
Voltage Regulation Accuracy	+/- 2 %
Ib - Input Bias Current	85 uA
Line Regulation	+/- 2.5 %
Load Regulation	10 uV/mA
Operating Supply Current	85 uA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000056 oz

For more information, please refer to datasheet

Documents

LP3999ITL-2.4/NOPB Datasheet

More Information

The LP3999 regulator is designed to meet the requirements of portable wireless battery-powered applications and will provide an accurate output voltage with low noise and low quiescent current. Ideally suited for powering RF/Analog devices this device will also be used to meet more general circuit requirements.
