Description

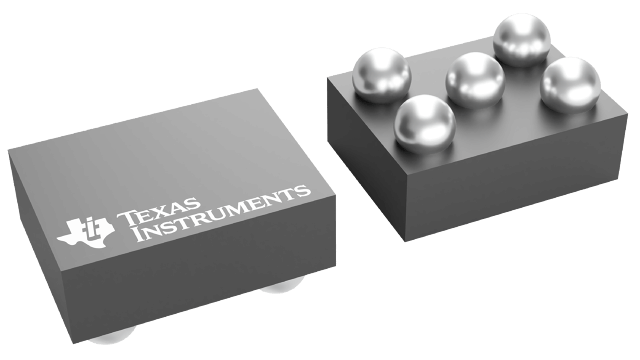

LP3999ITLX-2.8/NOPB Texas Instruments - Yeehing Electronics
150-mA, low-noise, low-dropout voltage regulator with enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.761 |
100 — 249 | 0.585 |
250 — 999 | 0.431 |
1,000 + | 0.22 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-5 |
Output Voltage | 2.8 V |
Output Current | 0.15 A |
Number of Outputs | 1 Output |
Polarity | Positive |
Quiescent Current | 150 uA |
Input Voltage MAX | 6 V |
Input Voltage MIN | 2.5 V |
Output Type | Fixed |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 60 mV |
Series | LP3999 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
Dropout Voltage - Max | 0.002 V at 1 mA, 0.1 V at 150 mA |
Voltage Regulation Accuracy | +/- 2 % |
Ib - Input Bias Current | 85 uA |
Operating Supply Current | 85 uA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
LP3999ITLX-2.8/NOPB Datasheet |
More Information
The LP3999 regulator is designed to meet the requirements of portable wireless battery-powered applications and will provide an accurate output voltage with low noise and low quiescent current. Ideally suited for powering RF/Analog devices this device will also be used to meet more general circuit requirements.
