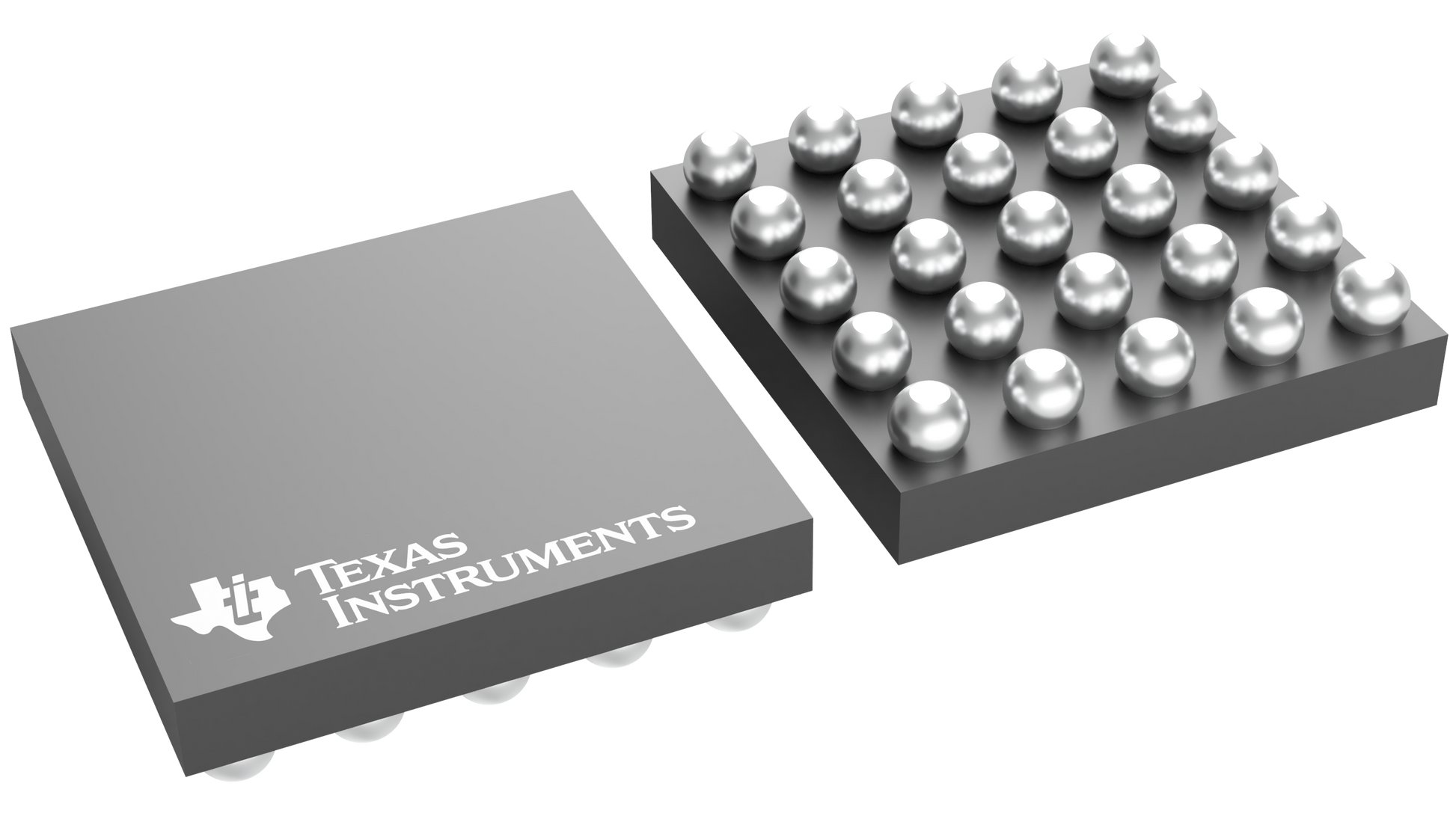

LP5520TL/NOPB Texas Instruments - Yeehing Electronics
RGB Backlight LED driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.87 |
| 100 — 249 | 3.391 |
| 250 — 999 | 2.378 |
| 1,000 + | 1.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 12 Channel |
| Output Current | 60 mA |
| Input Voltage | 2.9 V to 5.5 V |
| Operating Frequency | 1 MHz |
| Supply Current - Max | 1400 uA |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-25 |
| Series | LP5520 |
| Packaging | Reel |
| Features | Analog/PWM Mixed Dimming, Constant Current, Current Control, I2C Control |
| Height | 0.34 mm |
| Length | 2.77 mm |
| Operating Temperature Range | - 30 C to + 85 C |
| Output Type | Current Mode |
| Output Voltage | 20 V |
| Type | Inductive |
| Width | 2.59 mm |
| Brand | Texas Instruments |
| Topology | Boost |
| Low Level Output Current | 60000 uA |
| Operating Supply Voltage | 2.9 V to 5.5 V |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000300 oz |
For more information, please refer to datasheet
Documents
More Information
The LP5520 is an RGB backlight LED driver for small format color LCDs. RGB backlights enable better colors on the display and power savings compared with white LED backlights. The device offers a small and simple driver solution without need for optical feedback. Calibration in display module production can be done in one temperature. The LP5520 produces true white light over a wide temperature range. Three independent LED drivers have accurate programmable current sinks and PWM modulation control. Using internal calibration memory and external temperature sensor, the RGB LED currents are adjusted for perfect white balance independent of the brightness setting or temperature. The user programmable calibration memory has intensity vs temperature data for each color. This white balance calibration data can be programmed to the memory on the production line of a backlight module.
