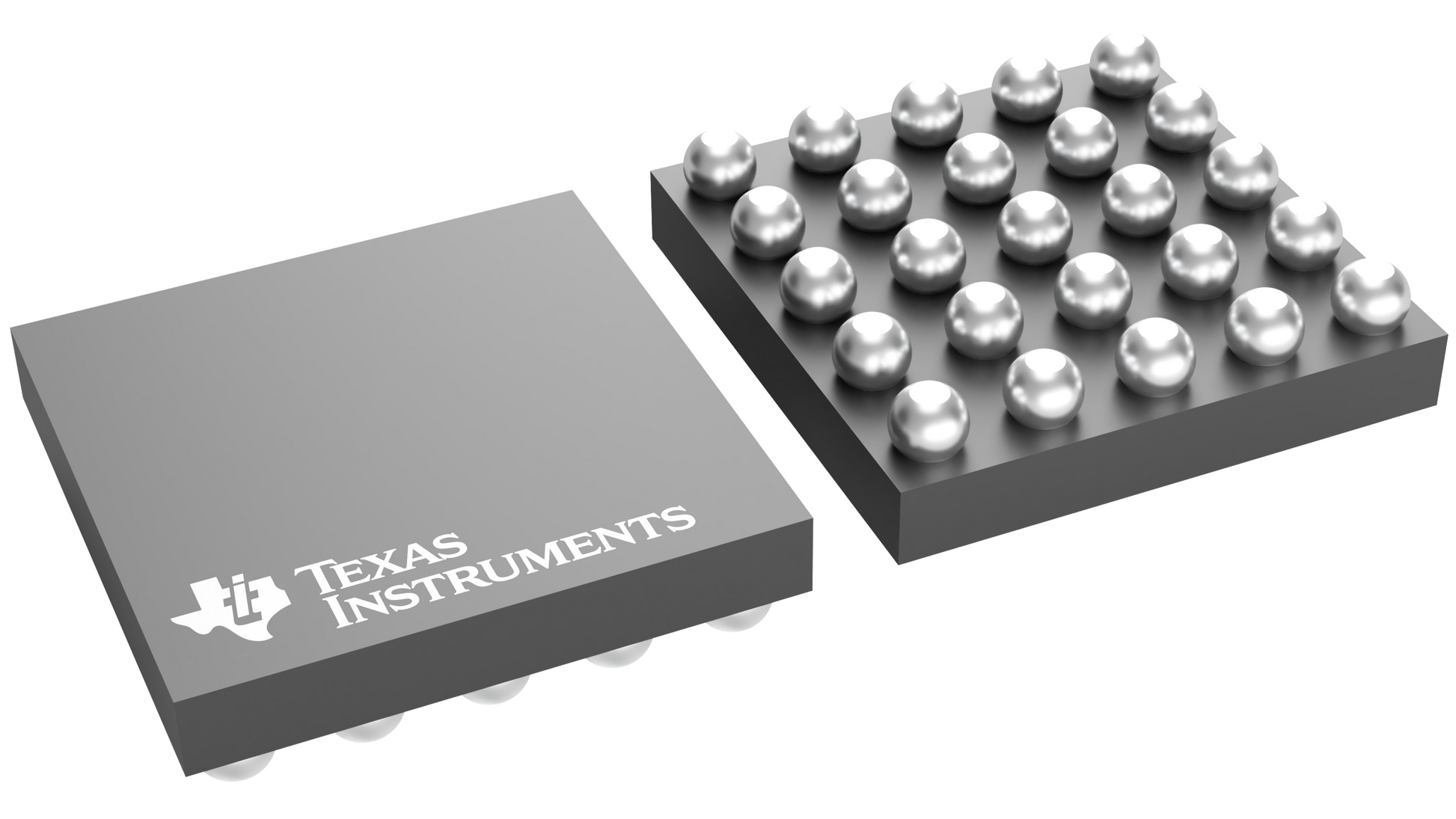

LP5520TLX/NOPB Texas Instruments - Yeehing Electronics

RGB Backlight LED driver

Pricing (USD)

Quantity	Unit Price
1 — 99	3.226
100 — 249	2.827
250 — 999	1.982
1,000 +	1.12

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LP5520TLX/NOPB Datasheet

More Information

The LP5520 is an RGB backlight LED driver for small format color LCDs. RGB backlights enable better colors on the display and power savings compared with white LED backlights. The device offers a small and simple driver solution without need for optical feedback. Calibration in display module production can be done in one temperature. The LP5520 produces true white light over a wide temperature range. Three independent LED drivers have accurate programmable current sinks and PWM modulation control. Using internal calibration memory and external temperature sensor, the RGB LED currents are adjusted for perfect white balance independent of the brightness setting or temperature. The user programmable calibration memory has intensity vs temperature data for each color. This white balance calibration data can be programmed to the memory on the production line of a backlight module.
