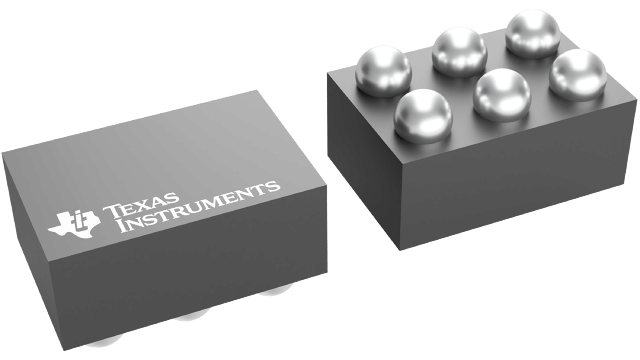

LP5522TM/NOPB Texas Instruments - Yeehing Electronics
Single channel programmable LED driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.146 |
| 100 — 249 | 0.882 |
| 250 — 999 | 0.649 |
| 1,000 + | 0.22 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 1 Channel |
| Output Current | 1 mA to 20 mA |
| Input Voltage | 2.7 V to 5.5 V |
| Supply Current - Max | 0.55 mA |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-6 |
| Series | LP5522 |
| Packaging | Reel |
| Features | Constant Current |
| Height | 0.41 mm |
| Length | 1.21 mm |
| Operating Temperature Range | - 30 C to + 85 C |
| Output Type | Constant Current |
| Width | 0.81 mm |
| Brand | Texas Instruments |
| Topology | PWM |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
| LP5522TM/NOPB Datasheet |
More Information
The LP5522 is a simple single wire programmable LED controller in six bump DSBGA package. It provides constant current flow through high side driver. Output current can be set from 1 mA to 20 mA by using an external resistor on the ISET pin. If no external resistor is used, output current is set to 5 mA default current. The LP5522 is controlled using only one signal. The signal controls either directly the LED driver or it launches previously programmed blinking sequence.
