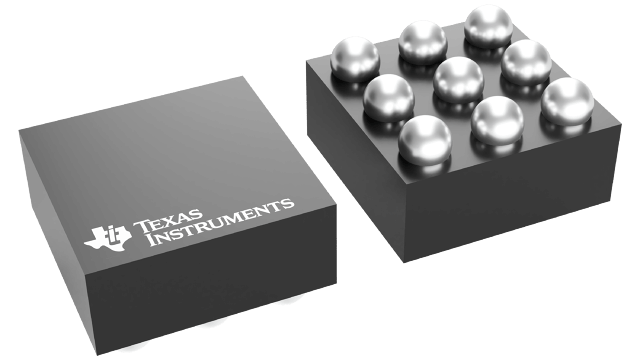

LP5524TMX-5/NOPB Texas Instruments - Yeehing Electronics
4 channel LED driver with dual PWM brightness control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.629 |
| 100 — 249 | 0.52 |
| 250 — 999 | 0.373 |
| 1,000 + | 0.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 4 Channel |
| Output Current | 25.5 mA |
| Input Voltage | 2.7 V to 5.5 V |
| Supply Current - Max | 0.21 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-9 |
| Series | LP5524 |
| Packaging | Reel |
| Features | Direct PWM Dimming |
| Height | 0.36 mm |
| Length | 1.22 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | Constant Current |
| Type | Linear |
| Width | 1.22 mm |
| Brand | Texas Instruments |
| Topology | PWM |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000063 oz |
For more information, please refer to datasheet
Documents
| LP5524TMX-5/NOPB Datasheet |
More Information
The LP5524 device is a highly integrated dual-zone LED driver that can drive up to four LEDs in parallel with a total output current of 100 mA. Regulated high-side internal current sources deliver excellent current and brightness matching in all LEDs.
