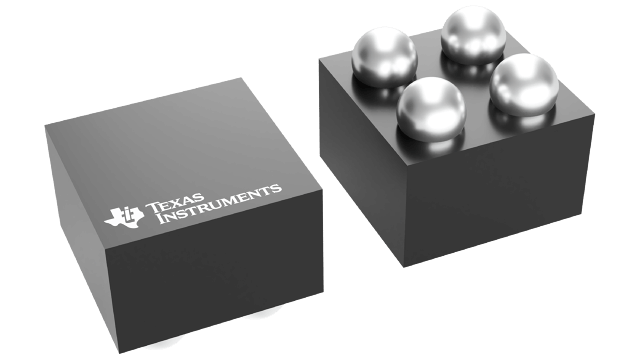

LP5560TME/NOPB Texas Instruments - Yeehing Electronics

programmable single LED driver with simple single wire control and small solution size

Pricing (USD)

Quantity	Unit Price
1 — 99	0.882
100 — 249	0.678
250 — 999	0.499
1,000 +	1.03

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Display Drivers
RoHS	Y
Series	LP5560
Package / Case	DSBGA-4
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Synchronous Rectification
Operating Temperature Range	- 30 C to + 85 C
Brand	Texas Instruments
Product Type	LED Display Drivers
Factory Pack Quantity	250
Subcategory	Driver ICs
Unit Weight	0.007055 oz

For more information, please refer to datasheet

Documents

LP5560TME/NOPB Datasheet

More Information

The LP5560 is a programmable LED driver that can generate variety of blinking sequences with up to three pulses of different length per sequence. Blinking sequences can be programmed through a single-wire interface. Programmable parameters include on and off times as well as rise and fall times. Default sequence is programmed into the LP5560 to enable the use of device in simple systems without programming capabilities.
