Description
LP5560TMX/NOPB Texas Instruments - Yeehing Electronics
programmable single LED driver with simple single wire control and small solution size
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.388 |
100 — 249 | 0.298 |
250 — 999 | 0.22 |
1,000 + | 0.11 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LED Display Drivers |
RoHS | Y |
Series | LP5560 |

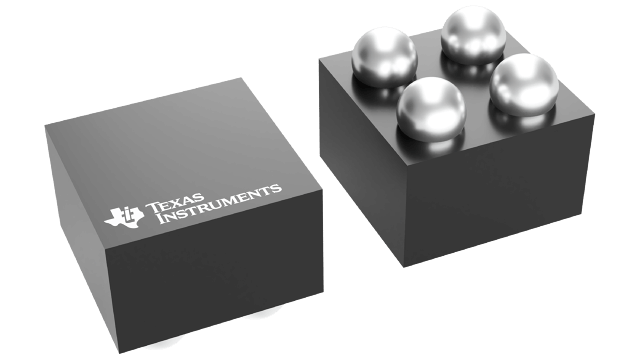

Package / Case | DSBGA-4 |
Minimum Operating Temperature | - 30 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Features | Synchronous Rectification |
Operating Temperature Range | - 30 C to + 85 C |
Brand | Texas Instruments |
Product Type | LED Display Drivers |
Factory Pack Quantity | 3000 |
Subcategory | Driver ICs |
Unit Weight | 0.007055 oz |
For more information, please refer to datasheet
Documents
LP5560TMX/NOPB Datasheet |
More Information
The LP5560 is a programmable LED driver that can generate variety of blinking sequences with up to three pulses of different length per sequence. Blinking sequences can be programmed through a single-wire interface. Programmable parameters include on and off times as well as rise and fall times. Default sequence is programmed into the LP5560 to enable the use of device in simple systems without programming capabilities.
