Texas Instruments
LP5900SDX-2.5/NOPB
LP5900SDX-2.5/NOPB
Regular price
$0.15 USD
Regular price
Sale price
$0.15 USD
Unit price
per
Couldn't load pickup availability
LP5900SDX-2.5/NOPB Texas Instruments - Yeehing Electronics
150-mA, low-noise, low-IQ, low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.519 |
| 100 — 249 | 0.399 |
| 250 — 999 | 0.294 |
| 1,000 + | 0.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

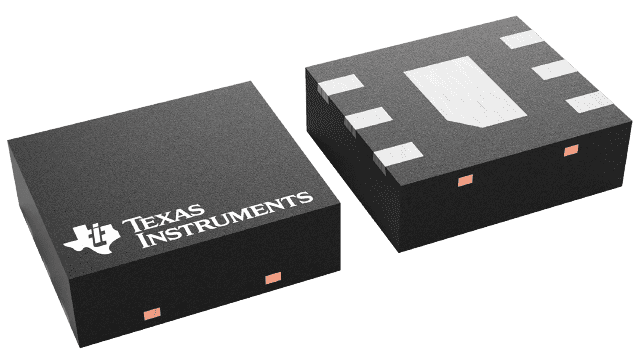

| Package / Case | WSON-6 |
| Output Voltage | 2.5 V |
| Output Current | 0.15 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 50 uA |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 2.5 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 80 mV |
| Series | LP5900 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.15 V at 150 mA |
| Voltage Regulation Accuracy | +/- 2 % |
| Ib - Input Bias Current | 25 uA |
| Line Regulation | 0.05 %/V |
| Load Regulation | 0.001 %/mA |
| Operating Supply Current | 25 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
| LP5900SDX-2.5/NOPB Datasheet |
More Information
The LP5900 is an LDO capable of supplying 150-mA output current. Designed to meet the requirements of RF and analog circuits, the LP5900 device provides low noise, high PSRR, low quiescent current, and low line transient response figures. Using new innovative design techniques the LP5900 offers class-leading device noise performance without a noise bypass capacitor.
