Texas Instruments

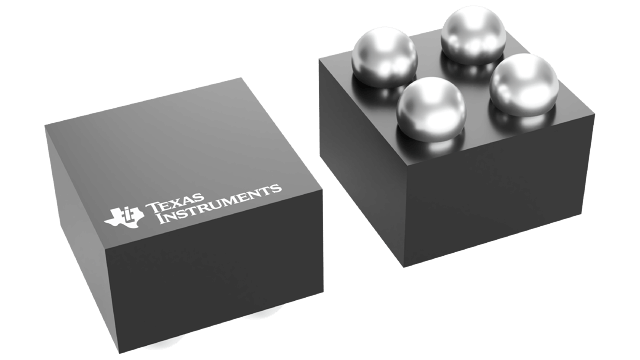

LP5904TME-1.2/NOPB
LP5904TME-1.2/NOPB
Regular price
$0.28 USD
Regular price
Sale price
$0.28 USD
Unit price
per
Couldn't load pickup availability
LP5904TME-1.2/NOPB Texas Instruments - Yeehing Electronics
200-mA, low-noise, high-PSRR, low-IQ, low-dropout voltage regulator with low-IQ & enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.988 |
| 100 — 249 | 0.76 |
| 250 — 999 | 0.56 |
| 1,000 + | 0.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-4 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 95 mV |
| Series | LP5904 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Operating Supply Current | 11 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LP5904TME-1.2/NOPB Datasheet |
More Information
The LP5904 is a linear regulator capable of supplying 200 mA output current. Designed to meet the requirements of RF/ Analog circuits, the LP5904 device provides low noise, high PSRR, low quiescent current, and low line transient response figures. Using new innovative design techniques the LP5904 offers class-leading device noise performance without a noise bypass capacitor and the ability for remote output capacitor placement. An active pulldown circuit with a 280Ω resistor is wired from the output to ground pins to quickly discharge output when the device is disabled (VEN = low).
