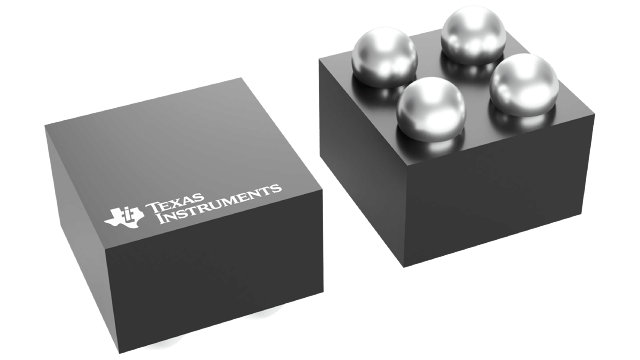

LP5904TME-2.85/NOPB Texas Instruments - Yeehing Electronics
200-mA, low-noise, high-PSRR, low-IQ, low-dropout voltage regulator with low-IQ & enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.988 |
100 — 249 | 0.76 |
250 — 999 | 0.56 |
1,000 + | 0.28 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-4 |
Output Voltage | 2.85 V |
Output Current | 200 mA |
Input Voltage MAX | 5.5 V |
Input Voltage MIN | 2.2 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 95 mV |
Series | LP5904 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
PSRR / Ripple Rejection - Typ | 75 dB |
Line Regulation | 0.16 %/V |
Load Regulation | 0.002 %/mA |
Operating Supply Current | 11 uA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
LP5904TME-2.85/NOPB Datasheet |
More Information
The LP5904 is a linear regulator capable of supplying 200 mA output current. Designed to meet the requirements of RF/ Analog circuits, the LP5904 device provides low noise, high PSRR, low quiescent current, and low line transient response figures. Using new innovative design techniques the LP5904 offers class-leading device noise performance without a noise bypass capacitor and the ability for remote output capacitor placement. An active pulldown circuit with a 280Ω resistor is wired from the output to ground pins to quickly discharge output when the device is disabled (VEN = low).
