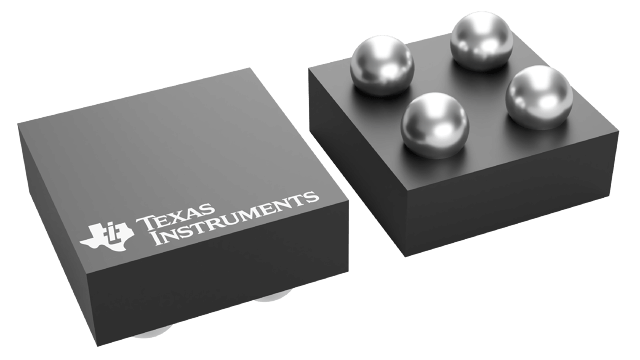

LP5910-1.825YKAR Texas Instruments - Yeehing Electronics

300-mA, low-noise, low-IQ, low-dropout voltage regulator with reverse current protection & enable

Pricing (USD)

Quantity	Unit Price
1 — 99	0.494
100 — 249	0.38
250 — 999	0.28
1,000 +	0.16

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	DSBGA-4
Output Voltage	1.825 V
Output Current	300 mA
Number of Outputs	1 Output
Quiescent Current	230 uA
Input Voltage MAX	3.3 V
Input Voltage MIN	1.3 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	120 mV
Series	LP5910
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Product	LDO Regulators
Type	Low Noise LDO
Brand	Texas Instruments
Dropout Voltage - Max	180 mV
Output Voltage Range	-
PSRR / Ripple Rejection - Typ	75 dB
Voltage Regulation Accuracy	2 %
Development Kit	LP5910YKA18EVM
Line Regulation	0.01 %/V
Load Regulation	0.002 %/mA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.007055 oz

For more information, please refer to datasheet

Documents

LP5910-1.825YKAR Datasheet

More Information

The LP5910 is a low-noise LDO that can supply up to 300 mA of output current. Designed to meet the requirements of RF and analog circuits, this device provides low noise, high PSRR, low quiescent current, and superior line transient and load transient response. Using new innovative design techniques the LP5910 offers class-leading noise performance without a noise bypass capacitor and with the option for remote output capacitor placement.
