LP5910-1.8YKAT Texas Instruments - Yeehing Electronics
300-mA, low-noise, low-IQ, low-dropout voltage regulator with reverse current protection & enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.988 |
100 — 249 | 0.76 |
250 — 999 | 0.56 |
1,000 + | 0.28 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |

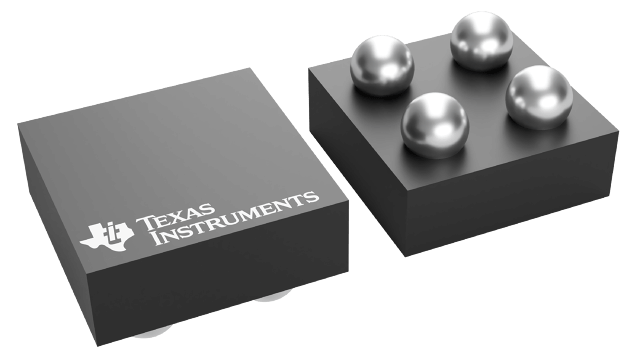

Package / Case | DSBGA-4 |
Output Voltage | 1.8 V |
Output Current | 300 mA |
Number of Outputs | 1 Output |
Input Voltage MAX | 3.3 V |
Input Voltage MIN | 1.3 V |
Output Type | Fixed |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 120 mV |
Series | LP5910 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Product | LDO Voltage Regulators |
Type | Linear Regulator |
Brand | Texas Instruments |
Output Voltage Range | - |
PSRR / Ripple Rejection - Typ | 25 dB |
Load Regulation | 0.002 %/mA |
Operating Supply Current | 12 uA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
LP5910-1.8YKAT Datasheet |
More Information
The LP5910 is a low-noise LDO that can supply up to 300 mA of output current. Designed to meet the requirements of RF and analog circuits, this device provides low noise, high PSRR, low quiescent current, and superior line transient and load transient response. Using new innovative design techniques the LP5910 offers class-leading noise performance without a noise bypass capacitor and with the option for remote output capacitor placement.
