Description

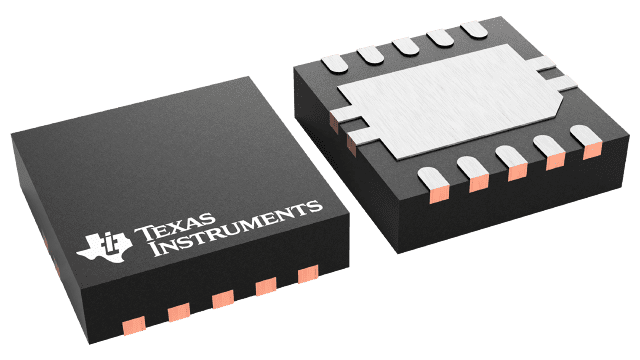

LP592201DSCT Texas Instruments - Yeehing Electronics
2-A adjustable LDO
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.626 |
100 — 249 | 2.301 |
250 — 999 | 1.613 |
1,000 + | 0.91 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | WSON-10 |
Output Voltage | Adj |
Output Current | 2 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 6 V |
Input Voltage MIN | 1.3 V |
Output Type | Adjustable |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 220 mV |
Series | LP5922 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Product | LDO Regulators |
Tolerance | 1.5 % |
Type | Low Noise LDO |
Brand | Texas Instruments |
Dropout Voltage - Max | 400 mV |
Output Voltage Range | 500 mV to 5 V |
PSRR / Ripple Rejection - Typ | 30 dB |
Development Kit | LP592201EVM |
Line Regulation | 0.02 %/V |
Load Regulation | 0.1 %/A |
Product Type | LDO Voltage Regulators |
Reference Voltage | 500 mV |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000917 oz |
For more information, please refer to datasheet
Documents
LP592201DSCT Datasheet |
More Information
The LP5922 is 2-A low dropout (LDO) linear regulator with 200-mV typical dropout voltage at maximum current levels. The LP5922 device can operate from a voltage rail down to 1.3 V without additional bias supply. System efficiency is maximized and power dissipation minimized by the low dropout and low VIN capability. The device also features low quiescent current and very low shutdown current.
