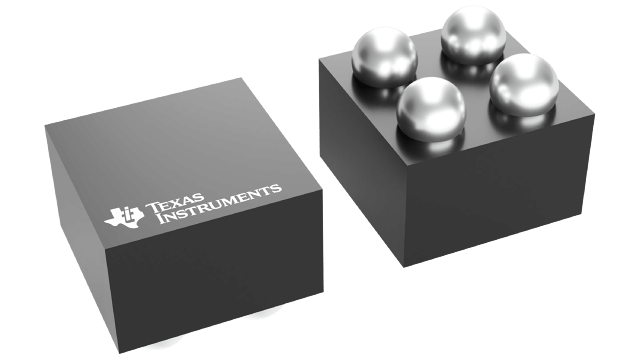

LP5990TM-2.8/NOPB Texas Instruments - Yeehing Electronics
200-mA, low-IQ, high-accuracy low-dropout voltage regulator with enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.652 |
100 — 249 | 0.502 |
250 — 999 | 0.369 |
1,000 + | 0.18 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-4 |
Output Voltage | 2.8 V |
Output Current | 200 mA |
Number of Outputs | 1 Output |
Polarity | Positive |
Quiescent Current | 75 uA |
Input Voltage MAX | 5.5 V |
Input Voltage MIN | 2.2 V |
Output Type | Fixed |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 160 mV |
Series | LP5990 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Product | Micropower LDO CMOS Voltage Regulators |
Tolerance | +/- 1 % |
Type | Accurate Output Voltage |
Brand | Texas Instruments |
Dropout Voltage - Max | 250 mV |
PSRR / Ripple Rejection - Typ | 55 dB |
Voltage Regulation Accuracy | +/- 1 % |
Ib - Input Bias Current | 30 uA |
Line Regulation | 1 mV |
Load Regulation | 5 mV |
Operating Supply Current | 30 uA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
LP5990TM-2.8/NOPB Datasheet |
More Information
The LP5990 regulator is designed to meet the requirements of portable, battery-powered systems providing an accurate output voltage, low noise and low quiescent current.
