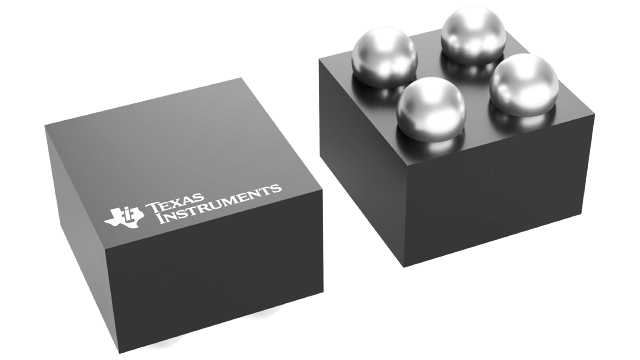

LP5990TM-3.0/NOPB Texas Instruments - Yeehing Electronics
200-mA, low-IQ, high-accuracy low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.543 |
| 100 — 249 | 0.418 |
| 250 — 999 | 0.308 |
| 1,000 + | 0.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-4 |
| Output Voltage | 3 V |
| Output Current | 200 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 75 uA |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 2.2 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 160 mV |
| Series | LP5990 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Micropower LDO CMOS Voltage Regulators |
| Tolerance | +/- 1 % |
| Type | Accurate Output Voltage |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.25 V at 200 mA |
| PSRR / Ripple Rejection - Typ | 55 dB |
| Voltage Regulation Accuracy | +/- 1 % |
| Ib - Input Bias Current | 30 uA |
| Line Regulation | 1 mV |
| Load Regulation | 5 mV |
| Operating Supply Current | 30 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000032 oz |
For more information, please refer to datasheet
Documents
| LP5990TM-3.0/NOPB Datasheet |
More Information
The LP5990 regulator is designed to meet the requirements of portable, battery-powered systems providing an accurate output voltage, low noise and low quiescent current.
