Texas Instruments
LP8340ILDX-ADJ/NOPB
LP8340ILDX-ADJ/NOPB
Regular price
$0.15 USD
Regular price
Sale price
$0.15 USD
Unit price
per
Couldn't load pickup availability
LP8340ILDX-ADJ/NOPB Texas Instruments - Yeehing Electronics
1-A, 10-V, low-IQ, low-dropout voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.267 |
| 100 — 249 | 0.975 |
| 250 — 999 | 0.718 |
| 1,000 + | 0.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

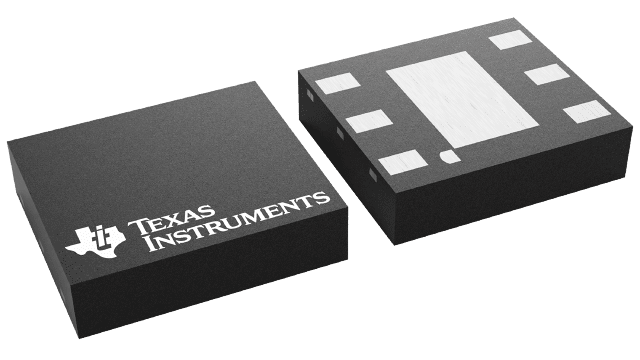

| Package / Case | WSON-6 |
| Output Voltage | 1.231 V to 1.269 V |
| Output Current | 1 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 50 uA |
| Input Voltage MAX | 10 V |
| Input Voltage MIN | 2.7 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 540 mV |
| Series | LP8340 |
| Packaging | Reel |
| Operating Temperature Range | 0 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.8 V at 800 mA, 1 V at 1 A |
| Voltage Regulation Accuracy | +/- 1.5 % |
| Ib - Input Bias Current | 19 uA |
| Line Regulation | 4 mV |
| Load Regulation | 6 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 19 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
| LP8340ILDX-ADJ/NOPB Datasheet |
More Information
The LP8340 low-dropout CMOS linear regulator is available in 5V, 3.3V, 2.5V, 1.8V and adjustable output versions. Packaged in the 6ld WSON package and 3ld PFM. The LP8340 can deliver up to 1.0A output current.
